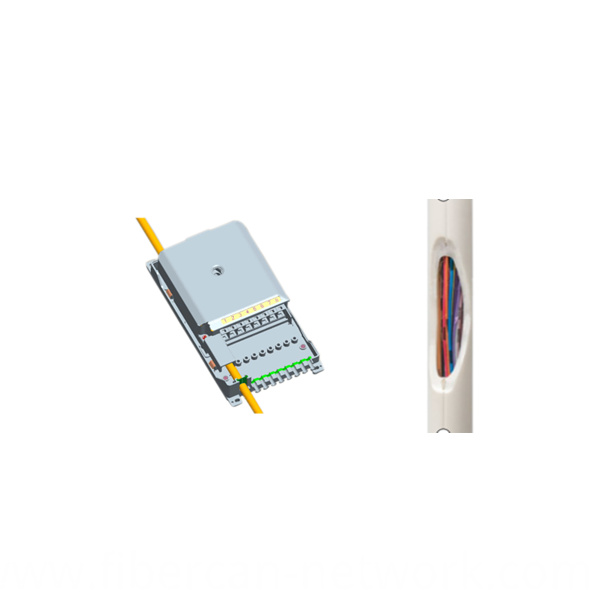

Fiber Optic Floor Distribution Box(Riser Wall Box)

Product Attributes

Model No.: 12F

Brand: Fibercan

Species: Backshell

Place Of Origin: China

Packaging & Delivery

Selling Units:Piece/Pieces

Package Type:Carton

Product Description

Fiber Capacity: 8 Fiber

Connector Type: SC/APC, SC/UPC, LC/APC, LC/UPC standard connector or field connector

Splitter Capacity: 1x8 PLC Splitter

Connector Standard：Grade B/1, Insertion Loss less than 0.25db

Adaptor Type: SC Simplex or LC Duplex

Drop Cable Capacity: 5-7.5mm Riser Cable, Mini-Breakout Cable

IP Rating：IP55(Indoor)

Material：ABS+PC

Application：Indoor FTTH, FTTx

Mounting Method：Wall Mounted

RoHS, Reach Compliance

Package: one piece per paper box, full equiped or empty

Pigtail Inspection Standard:

Test Standard:

1. Endface: IEC-61300-3-35

2. Optical Performance: IEC-61300-3-34

3.Mechanical Tensile: IEC-61300-2-6,IEC-61300-2-4

4.Durability: IEC 61300-2-2

5.Vibration: IEC 61300-2-1

6.Torision: IEC 61300-2-5

7.Drop: IEC 61300-2-12 (Method A)

8.Static Load：IEC 61300-2-42

9.Flex: GR‐326‐CORE, 4.4.3.2

10.Cold Test: IEC 61300-2-17

11.Dry Heat: IEC 61300-2-18

12.Damp Heat: IEC 61300-2-19

13.Temperature Change: IEC 61300-2-22

14.Damp Heat: IEC 60068-2-30

15.Salt Mist: IEC 61300-2-26

16.Humidity Cycling: IEC 61300-2-21

17.Dust：IEC 61300-2-27

18.Cable Bend：IEC 60794-1-21
