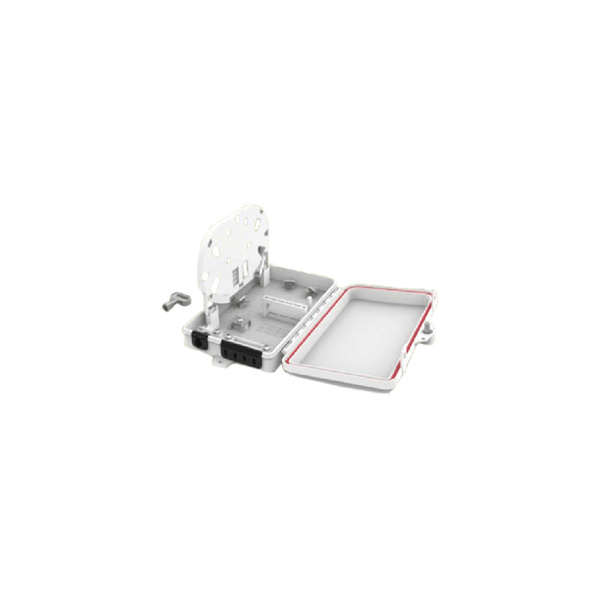

Fiber Optic Wall Box

Product Attributes

Model No.: 4F

Brand: Fibercan

Species: Backshell

Place Of Origin: China

Packaging & Delivery

Selling Units:Piece/Pieces

Package Type:Carton

Product Description

Fiber Capacity: 1 Fiber, 2 Fiber, 4 Fiber

Connector Type: SC/APC, SC/UPC, LC/APC, LC/UPC standard connector or field connector

Splitter Capacity: 1x4 PLC Splitter(1Pcs), Mini Tube Package

Connector Standard: Grade B/1,Insertion Loss less than 0.25db

Adaptor Type: SC Simplex or LC Duplex

Drop Cable Capacity: 3-5mm Round Drop Cable(4pcs), Flat Drop Cable 2*3mm

IP Rating: IP 65

Material: ABS+PC

Application: Outdoor/Indoor FTTH, FTTx

Mounting Method: Wall Mounted

RoHS, Reach Compliance UL-94-V0

Package: One piece per paper box, full equiped or empty

Pigtail Inspection Standard:

1. Endface: IEC-61300-3-351.

2. Optical Performance: IEC-61300-3-34

3.Mechanical Tensile: IEC-61300-2-6,IEC-61300-2-4

4.Durability: IEC 61300-2-2

5.Vibration: IEC 61300-2-1

6.Torision: IEC 61300-2-5

7.Drop IEC 61300-2-12(Method A)

8.Static Load：IEC 61300-2-42

9.Flex: GR‐326‐CORE, 4.4.3.2

10.Cold Test: IEC 61300-2-17

11.Dry Heat: IEC 61300-2-18

12.Damp Heat: IEC 61300-2-19

13.Temperature Change: IEC 61300-2-22

14.Damp Heat: IEC 60068-2-30

15.Salt Mist: IEC 61300-2-26

16.Humidity Cycling: IEC 61300-2-21

17.Dust: IEC 61300-2-27

18.Cable Bend: IEC 60794-1-21
