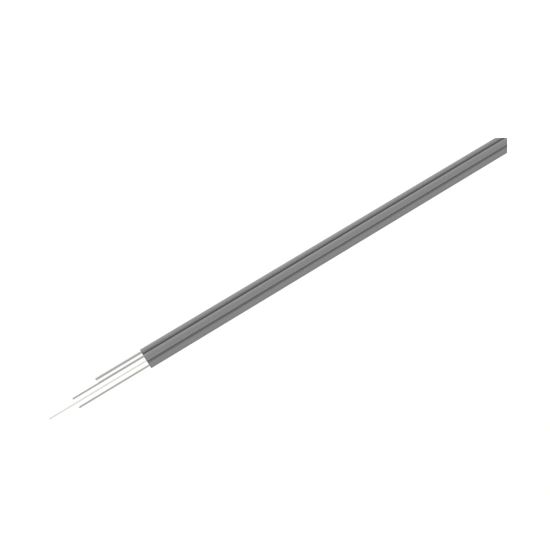

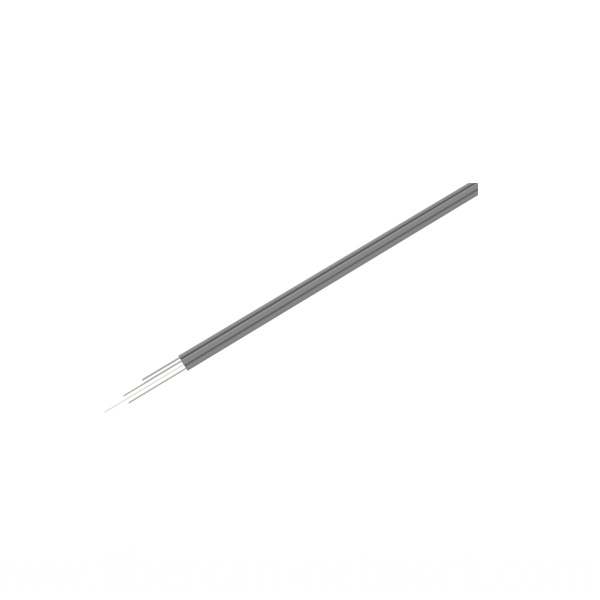

Figure 8 Fiber Optic Drop Cable(Messenger Wire)

Product Attributes

Model No.: Figure 8 Fiber Optic Drop Cable(Messenger Wire)

Brand: Fibercan

Place Of Origin: China

Packaging & Delivery

Selling Units:Piece/Pieces

Package Type:Carton

Product Description

Cable Diametre: 5.3*2.0mm

Fiber Counts: 1 Fiber,2 Fiber, 4 Fiber

Strength Member: 0.4 mm ± 0.05 * 2 galvanized steel wire

Messenger Wire: 1.1 mm ± 0.1 glued galvanized steel wire

Sheath Type: Low Friction LSZH, PVC, OFNR, OFNP, PE

Sheath Color: Grey, Black

Fiber Type: Singlemode G652D, Singlemode G657A1, Singlemode G657A2, Singlemode G657B3

Fiber Brand: Corning, YOFC, OFS, Draka, Fiberhome, Fujikura Optional

Mode Field Diametre: 8.6±0.4(Corning Fiber) or 8.8±0.4(YOFC Fiber)

Attenuation: @1310nm ＜0.36dB, @1550nm＜0.22dB

Tensile Short Term: 600N IEC 60794-1-21 E1

Tensile Long Term: 300N IEC 60794-1-21 E1

Crush Short Term：2200N

Crush Long Term：1000N

Min. bending radius (mm)：(Static) 30mm (Dynamic) 60mm

Operating temperature range: from -20°C to + 65°C
