GAM wall box-2 Cores

Product Attributes

Model No.: 809-0110-003

Brand: Fibercan

place of origin: China

Packaging & Delivery

Selling Units：SET

Package Type：Carton

Product Description

Fiber access termination box is able to hold up to 2 subscribers.

It is used as a termination point for the  feeder cable to connect with drop cable in FTTx network system.

It integrates fiber splicing ,distribution, storage and cable connection in one solid protection box.

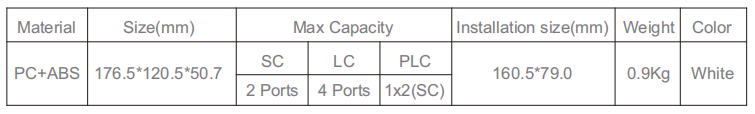

Configuration

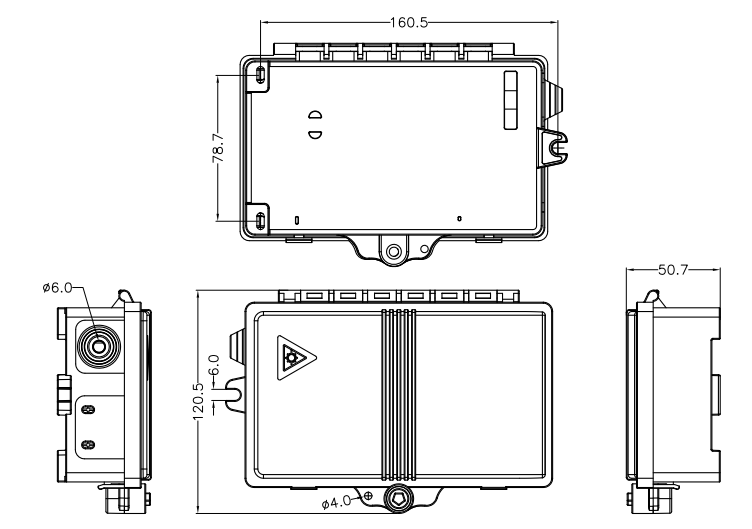

Mechanical Diagram(unit:mm)

Features

Total enclosed structure. wet-proof, dust-proof, anti-aging,Water-proof design with IP-66 Protection level.

Clamping for feeder cable and drop cable, fiber splicing,fixation, storage,distribution...etc all in one.

Cable, pigtails, patch cords are running through own pathwithout disturbing each other, cassette type SC adapto rinstallation, easy maintenance.

Cabinet can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor uses.

Easy to mantain and extend the capacity.

Fiber bend radius control more than 40mm.

2 ports cable entrance for drop cable.

Standard Accessories

Splice cassette and cable management tool,installation nuts and bolts,protection sleeves, hose clamp,rubber steal for cable entrance,extra lock and key.
