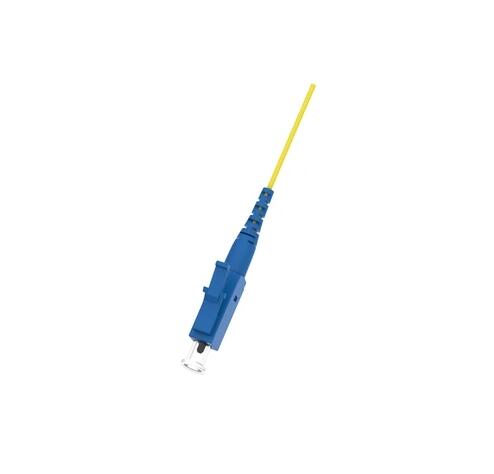

E2000 Fiber Optic Patch Cord

Product Attributes

Model No.:

Brand: Fibercan

place of origin:

Packaging & Delivery

Product Description

E2000 Fiber Optic Patch Cord
Product Name: Patch Cord, Patch Lead, Jumper
Connector Type:E2000/APC(8°or 9°), E2000/UPC(SM), E2000/PC(MM)
Connector Brand: R&M or Chinese version
Cable Type: Simplex or Duplex
Cable Diametre: 1.6mm-3.0mm
Fiber Type: OS2 OM1 OM2 OM3 OM4 OM5
Sheath Material: LSZH, PVC, TPU, TPE, OFNR, OFNP
Standard Compliance: IEC, Telcordia, RoHs, Reach Compliance
Quality Level: Grade A/1, Grade B/1, Grade C

Test Standard:
1. Endface: IEC 61300-3-35
2. Optical Performance: IEC 61300-3-34
3. Mechanical Tensile: IEC 61300-2-6, IEC 61300-2-4
4. Durability: IEC 61300-2-2
5. Vibration: IEC 61300-2-1
6. Torsion: IEC 61300-2-5
7. Drop: IEC 61300-2-12(Method A)
8. Static Load: IEC 61300-2-42
9. Flex: GR‐326‐CORE, 4.4.3.2
10. Cold Test: IEC 61300-2-17
11. Dry Heat: IEC 61300-2-18
12. Damp Heat: IEC 61300-2-19
13. Temperature Change: IEC 61300-2-22
14. Damp Heat: IEC 60068-2-30
15. Salt Mist: IEC 61300-2-26
16. Humidity Cycling: IEC 61300-2-21
17. Dust: IEC 61300-2-27
18. Cable Bend: IEC 60794-1-21
