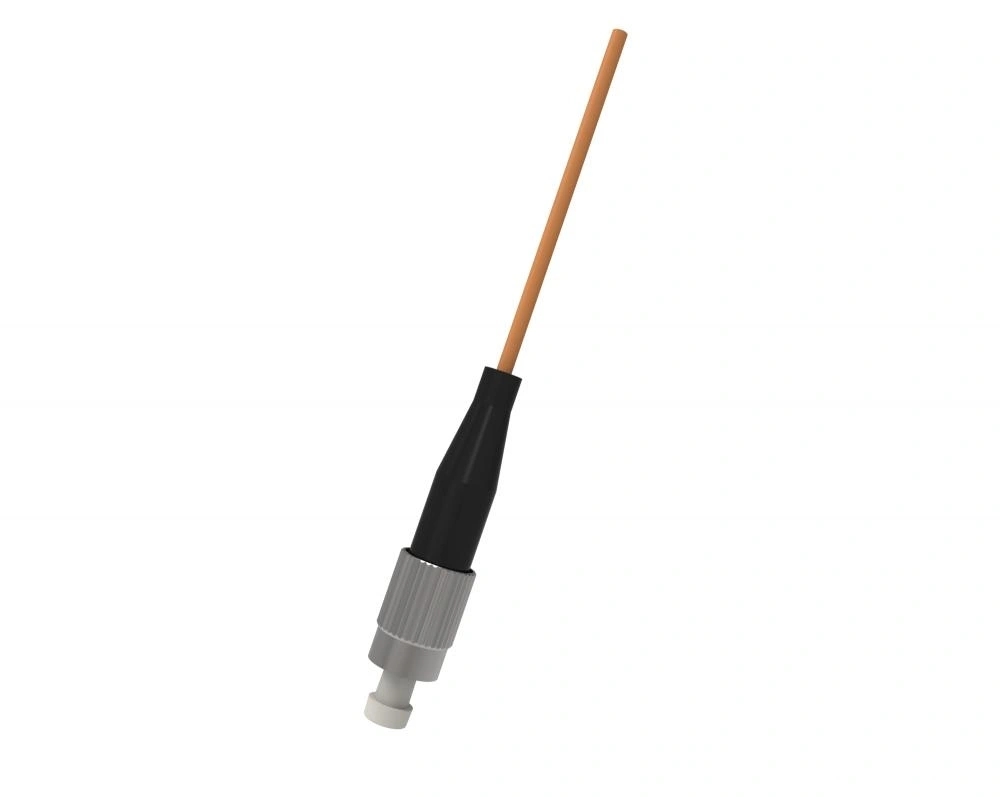

FC Fiber Optic Patch Cord

Product Description

FC Fiber Optic Patch Cord

Product Name: Patch Cord, Patch Lead, Jumper

Connector Type: FC/APC(8°or 9°），FC/UPC(SM),FC/PC(MM)

Cable Type: Simplex or Duplex

Cable Diametre: 1.2mm-3.0mm

Fiber Type: OS2 OM1 OM2 OM3 OM4 OM5

Sheath Material: LSZH, PVC, TPU, TPE, OFNR, OFNP

Standard Compliance: IEC, Telcordia, RoHs, Reach Compliance

Quality Level: Grade A/1,Grade B/1,Grade C

Test Standard:

1. Endface: IEC 61300-3-35

2. Optical Performance: IEC 61300-3-34

3. Mechanical Tensile: IEC 61300-2-6, IEC 61300-2-4

4. Durability: IEC 61300-2-2

5. Vibration: IEC 61300-2-1

6. Torsion: IEC 61300-2-5

7. Drop: IEC 61300-2-12(Method A)

8. Static Load: IEC 61300-2-42

9. Flex: GR‐326‐CORE, 4.4.3.2

10. Cold Test: IEC 61300-2-17

11. Dry Heat: IEC 61300-2-18

12. Damp Heat: IEC 61300-2-19

13. Temperature Change: IEC 61300-2-22

14. Damp Heat: IEC 60068-2-30

15. Salt Mist: IEC 61300-2-26

16. Humidity Cycling: IEC 61300-2-21

17. Dust: IEC 61300-2-27

18. Cable Bend: IEC 60794-1-21

Looking for ideal FC Fiber Optic Patch Lead Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the FC Fiber Optic Jumper are quality guaranteed. We are China Origin Factory of SC/APC Fiber Optic Patch Cord. If you have any question, please feel free to contact us.
