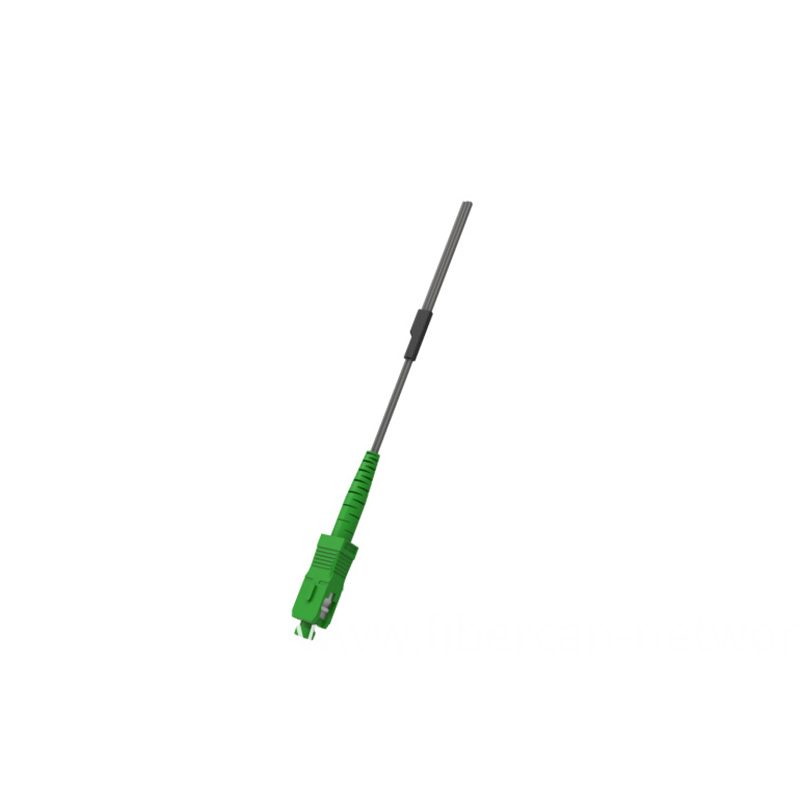

Fiber Optic Flat Drop Cable Assembly

Product Description

Figure-8 Drop Fiber Optic Cable with Steel Messenger Wire

Model No.: SC/APC, SC/UPC, LC/APC, LC/UPC
Brand: Fibercan
Place of Origin: China

Packaging & Delivery

• Selling Units: Piece/Pieces

• Package Type: Carton / Drum / Reel



Product Details

• Connector Type: SC/APC, SC/UPC, LC/APC, LC/UPC

• Cable Type: Figure-8 Drop Cable with Steel Messenger Wire

• Cable Sheath: Low Friction LSZH-UV, Grey, Black

• Fiber Type: Singlemode G652D, Singlemode G657A1, Singlemode G657A2, Singlemode G657B3

• Standard Compliance: IEC, Telcordia, RoHS, REACH

• Quality Level: Grade A/1, Grade B/1, Grade C



Test Standards

1. Endface: IEC 61300-3-35

2. Optical Performance: IEC 61300-3-34

3. Mechanical Tensile: IEC 61300-2-6, IEC 61300-2-4

4. Durability: IEC 61300-2-2

5. Vibration: IEC 61300-2-1

6. Torsion: IEC 61300-2-5

7. Drop: IEC 61300-2-12 (Method A)

8. Static Load: IEC 61300-2-42

9. Flex: GR‐326‐CORE 4.4.3.2

10. Cold Test: IEC 61300-2-17

11. Dry Heat: IEC 61300-2-18

12. Damp Heat: IEC 61300-2-19

13. Temperature Change: IEC 61300-2-22

14. Damp Heat: IEC 60068-2-30

15. Salt Mist: IEC 61300-2-26

16. Humidity Cycling: IEC 61300-2-21

17. Dust: IEC 61300-2-27

18. Cable Bend: IEC 60794-1-21
