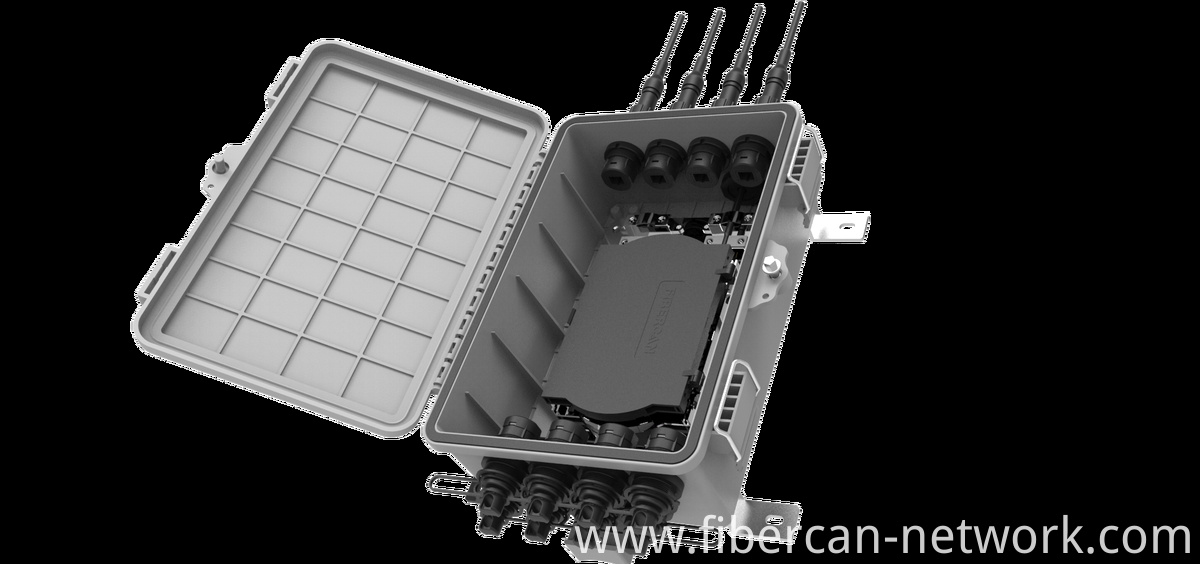

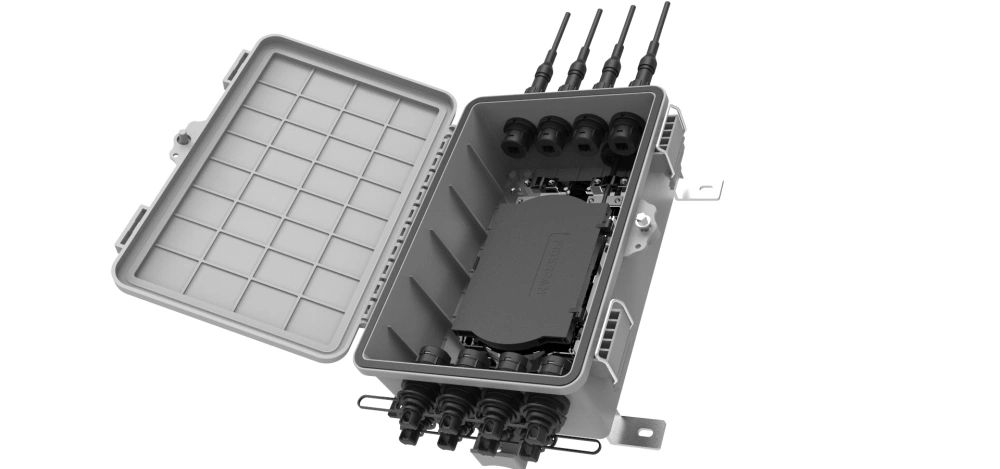

Fiber Optic IP68 Splice Box

Product Attributes

Model No.: Fiber Optic IP68 Splice Box

Brand: Fibercan

species: Backshell

place of origin: China

Packaging & Delivery

Selling Units:Piece/Pieces

Package Type:Carton

Product Description

Fiber Splice Capacity: 4-24 Fiber

Splitter Capacity: 1x8 PLC Splitter

Incoming Cable: Outdoor Cable 4-24 Fiber

Connector Type: SC Simplex, LC Duplex, MTP/MPO in Toptap and M-SC Connector

Connector Standard: Insertion Loss＜0.3db

Compatible Connectors: Corning Optitap,Huawei Mini-SC,Amphenol H-Connector

IP Rating: IP68

Material Type: ABS+PC

Mounting Method: Hanging, Wall Mounted, Pole Mounted

RoHs, Reach, UL-94-V0 compliance

Package: Every piece in a paper box, full equiped or empty

Pigtail Inspection Standard:

1. Endface: IEC-61300-3-35

2. Optical Performance: IEC-61300-3-34

3.Mechanical Tensile: IEC-61300-2-6,IEC-61300-2-4

4.Durability: IEC 61300-2-2

5.Vibration: IEC 61300-2-1

6.Torision: IEC 61300-2-5

7.Drop：IEC 61300-2-12 (Method A)

8.Static Load: IEC 61300-2-42

9.Flex: GR‐326‐CORE, 4.4.3.2

10.Cold Test: IEC 61300-2-17

11.Dry Heat: IEC 61300-2-18

12.Damp Heat: IEC 61300-2-19

13.Temperature Change: IEC 61300-2-22

14.Damp Heat: IEC 60068-2-30

15.Salt Mist: IEC 61300-2-26

16.Humidity Cycling: IEC 61300-2-21

17.Dust：IEC 61300-2-27

18.Cable Bend：IEC 60794-1-21
