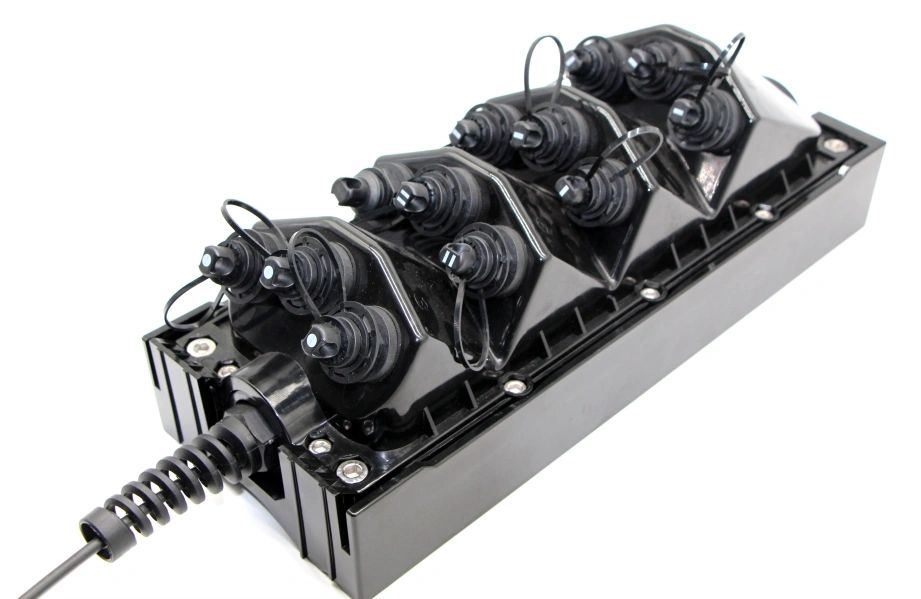

Fiber Optic IP68 Splice Enclosure

Product Attributes

Model No.: Fiber Optic IP68 Splice Box

Brand: Fibercan

Species: Backshell

Place Of Origin: China

Packaging & Delivery

Selling Units:Piece/Pieces

Package Type:Carton

Product Description

Fiber Splice Capacity: 4-24 Fiber

Splitter Capacity: 1x8 PLC Splitter

Incoming Cable: Outdoor Cable 4-24 Fiber

Connector Type: SC Simplex, LC Duplex, MTP/MPO in Toptap and M-SC Connector

Connector Standard: Insertion Loss＜0.3db

Compatible Connectors: Corning Optitap, Huawei Mini-SC, Amphenol H-Connector

IP Rating: IP68

Material Type: ABS+PC

Mounting Method: Hanging, Wall Mounted, Pole Mounted

RoHs, Reach UL-94-V0 compliance

Package: one piece per box, full equiped or empty

Pigtail Inspection Standard:

1.Endface: IEC-61300-3-35

2.Optical Performance: IEC-61300-3-34

3.Mechanical Tensile: IEC-61300-2-6,IEC-61300-2-4

4.Durability: IEC 61300-2-2

5.Vibration: IEC 61300-2-1

6.Torision: IEC 61300-2-5

7.Drop IEC 61300-2-12(Method A)

8.Static Load: IEC 61300-2-42

9.Flex: GR‐326‐CORE, 4.4.3.2

10.Cold Test: IEC 61300-2-17

11.Dry Heat: IEC 61300-2-18

12.Damp Heat: IEC 61300-2-19

13.Temperature Change: IEC 61300-2-22

14.Damp Heat: IEC 60068-2-30

15.Salt Mist: IEC 61300-2-26

16.Humidity Cycling: IEC 61300-2-21

17.Dust：IEC 61300-2-27

18.Cable Bend：IEC 60794-1-21

Looking for ideal Splice Enclosure Fiber Optic Manufacturer & supplier ?

We have a wide selection at good prices to help you get creative.

All the Fibre Optic Splice Enclosure are quality guaranteed.

We are China Origin Factory of Corning Splice Enclosure.

If you have any question, please feel free to contact us.
