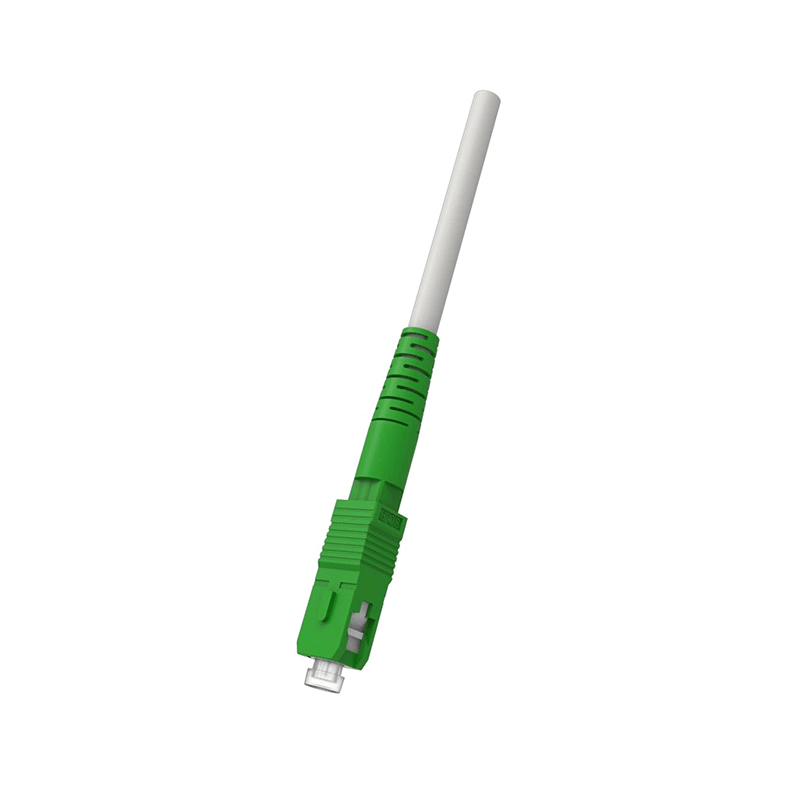

Fiber Optic Loose Tube Drop Cable Assembly

Product Description

Fiber Optic Round Drop Cable with Loose Tube

Model No.: SC, SC/APC, SC/UPC, LC, LC/APC, LC/UPC
Brand: Fibercan
Place of Origin: China

Packaging & Delivery
Selling Units: Piece/Pieces
Package Type: Carton / PE Bag / Drum / Reel

Product Details
Connector Type: SC/APC, SC/UPC, LC/APC, LC/UPC
Cable Type: Round Drop Cable with Loose Tube inside
Cable Diameter: 4.0mm–5.0mm
Cable Sheath: LSZH-UV, Ivory, Grey, Black
Cable Certificate: CPR Dca
Fiber Type: Singlemode G652D, Singlemode G657A1, Singlemode G657A2, Singlemode G657B3
Standard Compliance: IEC, Telcordia, RoHS, REACH
Quality Level: Grade A/1, Grade B/1, Grade C

Test Standard

1. Endface: IEC 61300-3-35

2. Optical Performance: IEC 61300-3-34

3. Mechanical Tensile: IEC 61300-2-6, IEC 61300-2-4

4. Durability: IEC 61300-2-2

5. Vibration: IEC 61300-2-1

6. Torsion: IEC 61300-2-5

7. Drop: IEC 61300-2-12 (Method A)

8. Static Load: IEC 61300-2-42

9. Flex: GR‐326‐CORE 4.4.3.2

10. Cold Test: IEC 61300-2-17

11. Dry Heat: IEC 61300-2-18

12. Damp Heat: IEC 61300-2-19

13. Temperature Change: IEC 61300-2-22

14. Damp Heat: IEC 60068-2-30

15. Salt Mist: IEC 61300-2-26

16. Humidity Cycling: IEC 61300-2-21

17. Dust: IEC 61300-2-27

18. Cable Bend: IEC 60794-1-21
