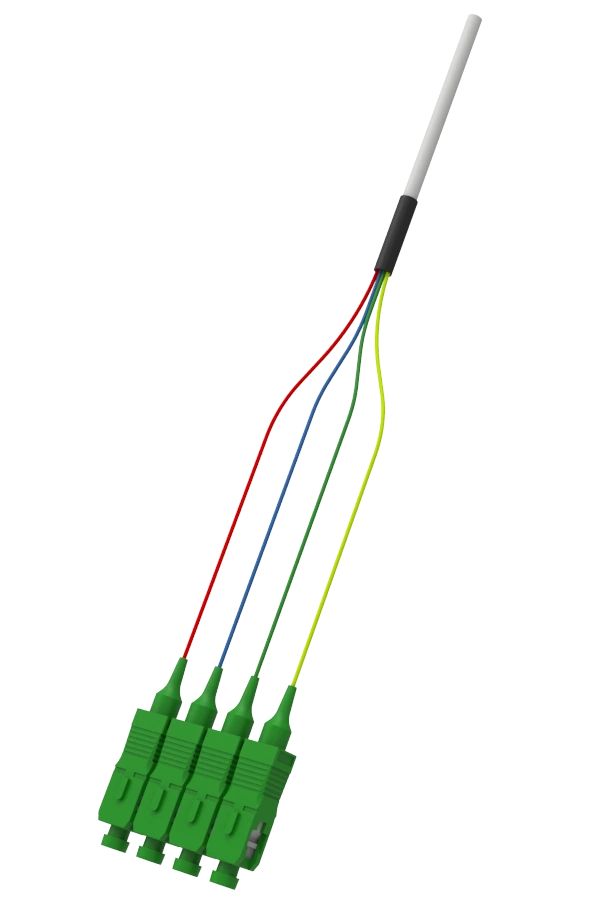

Fiber Optic Micro-Bundle Drop Cable Assembly

Product Attributes

Model No.: SC,SC/APC,SC/UPC,LC,LC/APC,LC/UPC

Brand: Fibercan

Place Of Origin: China

Packaging & Delivery

Selling Units: Piece/Pieces

Package Type: Carton

Product Description

Connector Type: SC/APC SC/UPC LC/APC LC/UPC

Cable Type: Micro-Bundle Drop Cable,W&W/O FRP

Cable Diametre: 2.65mm-5.0mm

Cable Sheath: LSZH-UV or HDPE, Grey ,White and Black

Cable Certificate: CPR Cca and UKCA

Fiber Counts: 1-12 Fiber

Fiber Type: Singlemode G652D, Singlemode G657A1, Singlemode G657A2, Singlemode G657B3

Package: Drum or Reel

Standard Compliance: IEC and Telcordia RoHs Reach Compliance

Quality Level: Grade A/1, Grade B/1, Grade C

Test Standard:

1. Endface: IEC 61300-3-35

2. Optical Performance: IEC 61300-3-34

3. Mechanical Tensile: IEC 61300-2-6, IEC 61300-2-4

4. Durability: IEC 61300-2-2

5. Vibration: IEC 61300-2-1

6. Torsion: IEC 61300-2-5

7. Drop: IEC 61300-2-12(Method A)

8. Static Load: IEC 61300-2-42

9. Flex: GR‐326‐CORE 4.4.3.2

10. Cold Test: IEC 61300-2-17

11. Dry Heat: IEC 61300-2-18

12. Damp Heat: IEC 61300-2-19

13. Temperature Change: IEC 61300-2-22

14. Damp Heat: IEC 60068-2-30

15. Salt Mist: IEC 61300-2-26

16. Humidity Cycling: IEC 61300-2-21

17. Dust: IEC 61300-2-27

18. Cable Bend: IEC 60794-1-21

Looking for ideal Micro-Bundle Drop Cable Assembly Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the FTTH Fiber Optic Drop Cable Assembly are quality guaranteed. We are China Origin Factory of FTTH Fibre Optic Drop Cable Assembly. If you have any question, please feel free to contact us.
