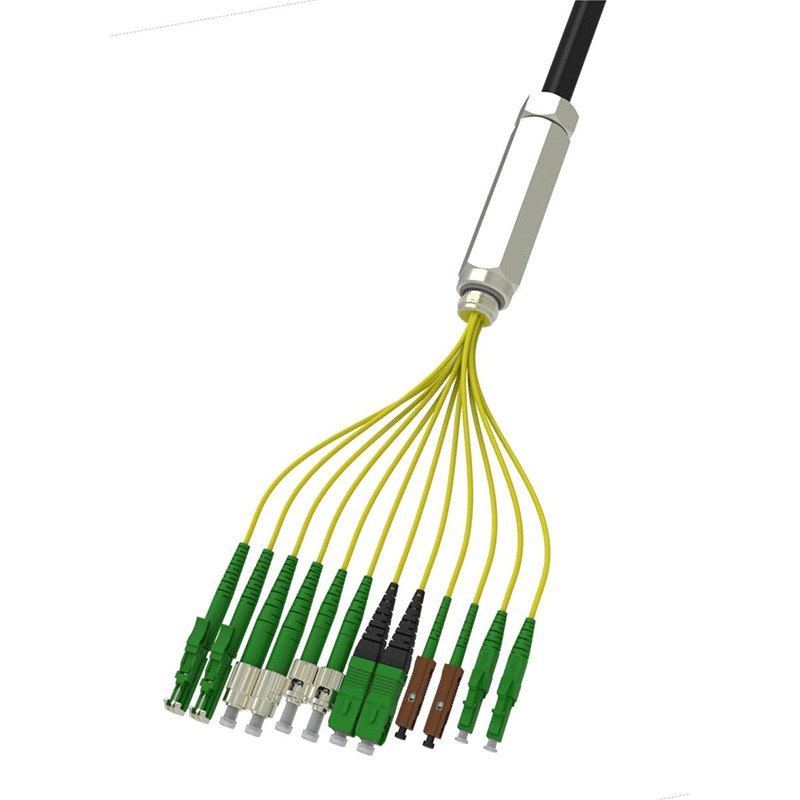

Fiber Optic Node Cable Assembly

Product Description

Fiber Optic Node Cable Assembly

Model No.: SC, SC/APC, SC/UPC, LC, LC/APC, LC/UPC
Brand: Fibercan
Place of Origin: China

Packaging & Delivery

• Selling Units: Piece/Pieces

• Package Type: Carton



Product Details

• Connector Type: SC/APC, SC/UPC, LC/APC, LC/UPC

• Fanout Kits: Metal (Special Dimension)

• Application: CATV

• Cable Type: Indoor/Outdoor Cable with Jelly or All-Dry

• Fiber Counts: 4–24 Fiber

• Fiber Type: Singlemode OS2, Multimode OM1, OM2, OM3, OM4, OM5

• Sheath Material: LSZH, PVC, TPU, TPE, OFNR, OFNP, HDPE

• Quality Level: Grade A/1, Grade B/1, Grade C

• Standard Compliance: IEC, Telcordia, RoHs, Reach Compliance



Test Standards:

1. Endface: IEC-61300-3-35

2. Optical Performance: IEC-61300-3-34

3. Mechanical Tensile: IEC-61300-2-6, IEC-61300-2-4

4. Durability: IEC-61300-2-2

5. Vibration: IEC-61300-2-1

6. Torsion: IEC-61300-2-5

7. Drop: IEC-61300-2-12 (Method A)

8. Static Load: IEC-61300-2-42

9. Flex: GR‐326‐CORE, 4.4.3.2

10. Cold Test: IEC-61300-2-17

11. Dry Heat: IEC-61300-2-18

12. Damp Heat: IEC-61300-2-19

13. Temperature Change: IEC-61300-2-22

14. Damp Heat: IEC-60068-2-30

15. Salt Mist: IEC-61300-2-26

16. Humidity Cycling: IEC-61300-2-21

17. Dust: IEC-61300-2-27

18. Cable Bend: IEC-60794-1-21
