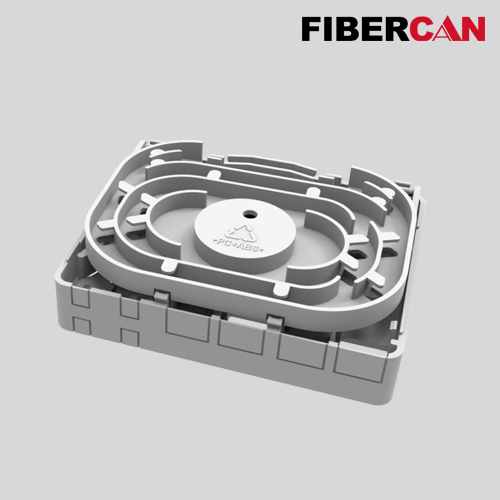

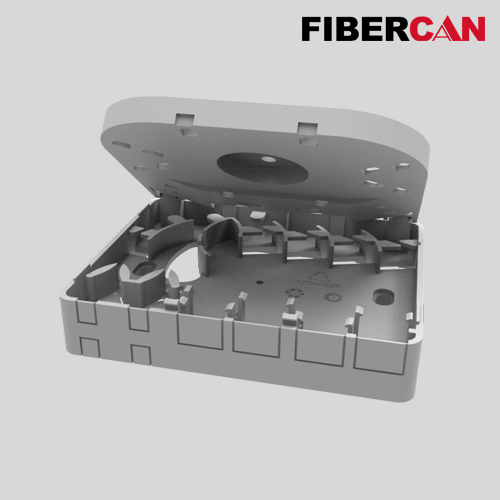

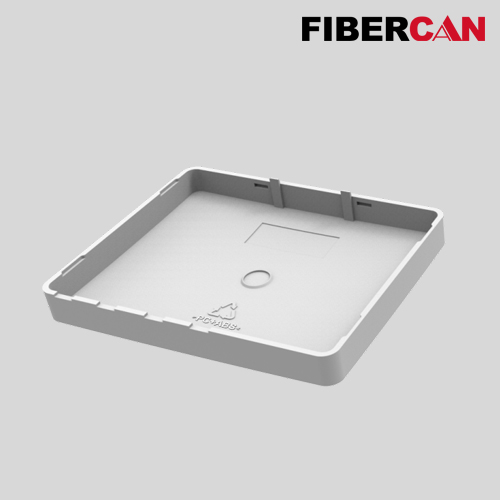

Fiber Wall-box-4core

Product Attributes

Model No.: 809-0144-020

Brand: Fibercan

place of origin: China

Packaging & Delivery

Product Description

● It is used for different kinds of modules and applied to the working area subsystem.

● It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO.

● With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate. All modules can be configured on customer’s choice.

● Cable management can be connected without cutting(with express port).

● All modules are free of welding.

Features

Accommodation of 4 adapters.

Easy installation.

Suitable for SC sx and LC dx adapters.

Easy slick-in cover mounting.

Hinged and detachable splice cassette.

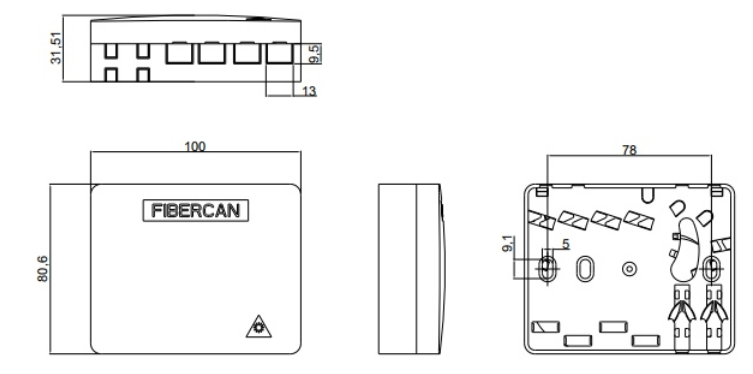

Mechanical Diagram(unit:mm)

Application

Optical Telecommunication System, LAN , Optical fiber Communication System.

Optical fiber testing machine /test equipment.

CATV Networks, Fiber optical transducer.

Optical fiber broadband access network, FTTH access network.

Optical fiber ODF，Rack and wall mount fiber optical distribution frame.
