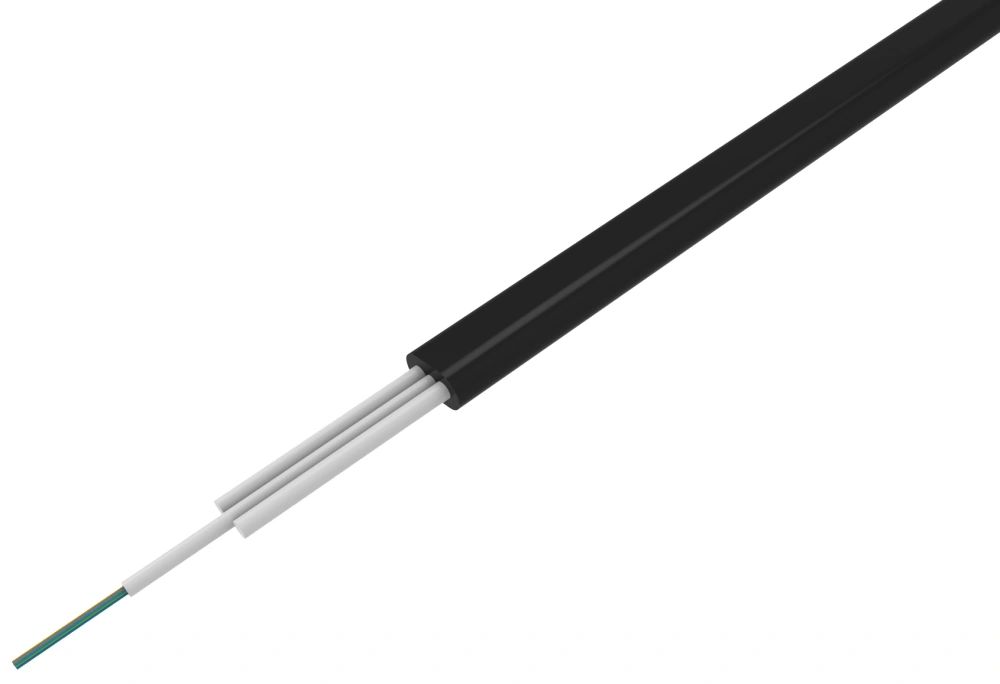

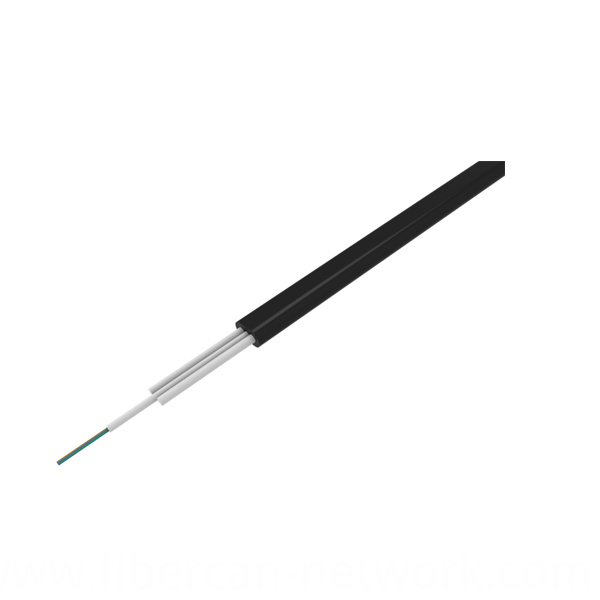

Flat Fiber Optic Drop Cable

Payment Type:

Incoterm: FOB,CIF,EXW,DDU,Express Delivery

Transportation：Ocean,Land,Air,Express

Supply Type:

Inquire

Product Description

Product Attributes

Model No.: Flat Fiber Optic Drop Cable

Brand: Fibercan

Place Of Origin: China

Packaging & Delivery

Selling Units:Piece/Pieces

Package Type:Carton

Product Description

Cable Diametre: 8.1*4.4mm,7.8mm*4.3mm

Fiber Counts: 1-12 Fiber

Strength Member: FRP

Sheath Type: Low Friction LSZH ,PVC,OFNR,OFNP,PE

Sheath Color: Black

Fiber Type: Singlemode G652D, Singlemode G657A1, Singlemode G657A2, Singlemode G657B3

Fiber Brand: Corning, YOFC, OFS, Draka, Fiberhome, Fujikura Optional

Mode Field Diametre: 8.6±0.4(Corning Fiber) or 8.8±0.4(YOFC Fiber)

Attenuation: @1310nm ＜0.36dB, @1550nm＜0.22dB

Tensile Short Term: 1350N IEC 60794-1-21 E1

Tensile Long Term: 400N IEC 60794-1-21 E1

Crush Short Term：1000N

Crush Long Term：300N

Min. bending radius (mm)：(Static) 10D (Dynamic) 20D

Operating temperature range: from -20°C to + 65°C
