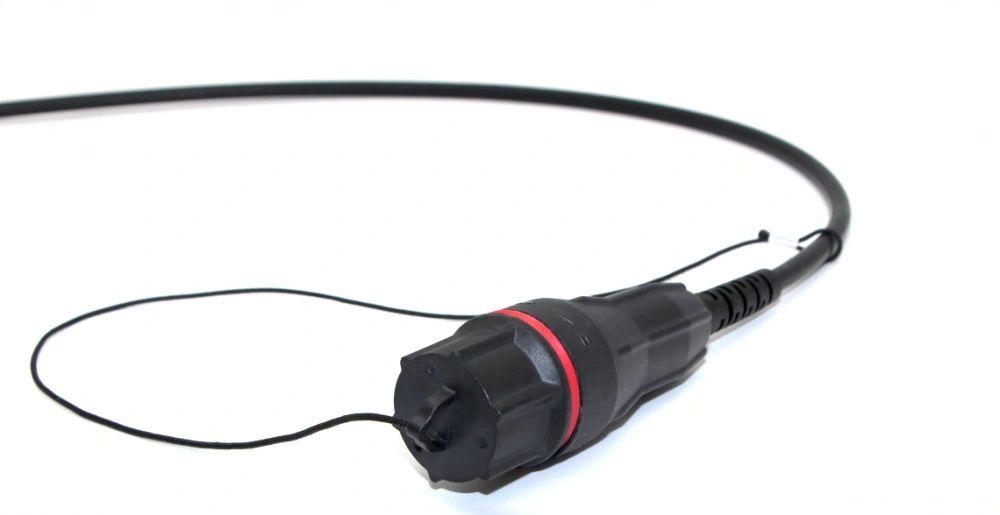

FullAXS Cable Assembly

Product Attributes

Model No.: FullAXS Cable Assembly

Brand: Fibercan

Species: Backshell

Place Of Origin: China

Packaging & Delivery

Selling Units: Piece/Pieces

Package Type: Carton

Product Description

Application: Fiber Optic IP68 Hardened Cable Assembly

Cable Type: Round Cable, Flat Cable or Figure 8 Drop Cable with messenger wire

Fiber Type: Singlemode G652D, Singlemode G657A2, Singlemode G657B3

Sheath Material: Low Friction LSZH, PE, PVC, OFNR, OFNP

Housing Material: PEI+30%FV

Connector Type: SC Simplex, LC Duplex, MTP and MPO

Quality Level: Grade B or Grade C

Standard compliance: IEC, Telcordia, RoHs

Test Standard:

1. Endface: IEC-61300-3-35

2. Optical Performance: IEC-61300-3-34

3.Mechanical Tensile: IEC-61300-2-6,IEC-61300-2-4

4.Durability: IEC 61300-2-2

5.Vibration: IEC 61300-2-1

6.Torision: IEC 61300-2-5

7.Drop IEC 61300-2-12(Method A)

8.Static Load：IEC 61300-2-42

9.Flex: GR‐326‐CORE, 4.4.3.2

10.Cold Test: IEC 61300-2-17

11.Dry Heat: IEC 61300-2-18

12.Damp Heat: IEC 61300-2-19

13.Temperature Change: IEC 61300-2-22

14.Damp Heat: IEC 60068-2-30

15.Salt Mist: IEC 61300-2-26

16.Humidity Cycling: IEC 61300-2-21

17.Dust：IEC 61300-2-27

18.Cable Bend：IEC 60794-1-21

Looking for ideal Fiber Optic IP68 Cable Assembly Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the Round Cable are quality guaranteed. We are China Origin Factory of Figure 8 Drop Cable with Messenger Wire. If you have any question, please feel free to contact us.
