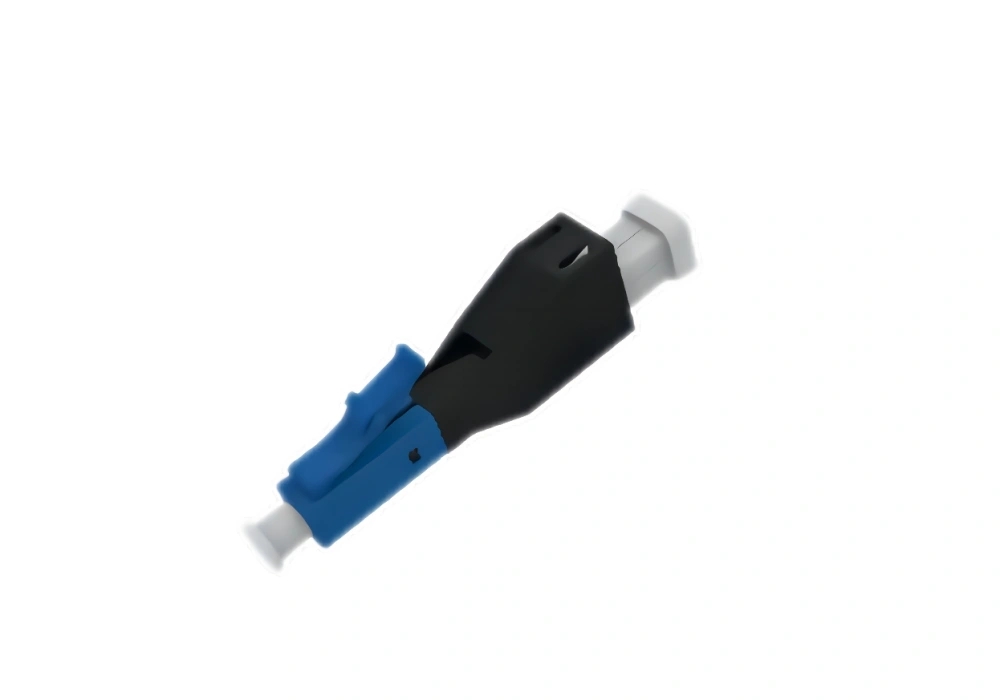

LC Fiber Optic Attenuator

Product Description

Product Attributes

Model No.:
LC/APC, LC/UPC, LC/PC

Brand:
Fibercan

Place of Origin:
China

Packaging & Delivery
Selling Units: Piece/Pieces
Package Type: Carton

Product Description

Polishing Type:
LC/APC, LC/UPC, LC/PC (Multimode)

Housing Material:
Plastic

Attenuation:
1–25dB

Standard Compliance:
IEC, Telcordia, RoHS, REACH Compliance

Attenuation Fiber Brand:
CorActive, POFC, Optonest

Ceramic Ferrule Brand:
China Chaozhou Three Circle (CCTC)

Optical Performance:
0–5dB (±0.3dB)
6–10dB (±0.5dB)
11–25dB (±1dB)

Inspection Standards

IEC, GR-910-CORE, GR1221

1. Endface: IEC 61300-3-35

2. Optical Performance: IEC 61300-3-34

3. Mechanical Tensile: IEC 61300-2-6, IEC 61300-2-4

4. Durability: IEC 61300-2-2

5. Vibration: IEC 61300-2-1

6. Torsion: IEC 61300-2-5

7. Drop: IEC 61300-2-12 (Method A)

8. Static Load: IEC 61300-2-42

9. Flex: GR-326-CORE, 4.4.3.2

10. Cold Test: IEC 61300-2-17

11. Dry Heat: IEC 61300-2-18

12. Damp Heat: IEC 61300-2-19

13. Temperature Change: IEC 61300-2-22

14. Damp Heat: IEC 60068-2-30

15. Salt Mist: IEC 61300-2-26

16. Humidity Cycling: IEC 61300-2-21

17. Dust: IEC 61300-2-27
