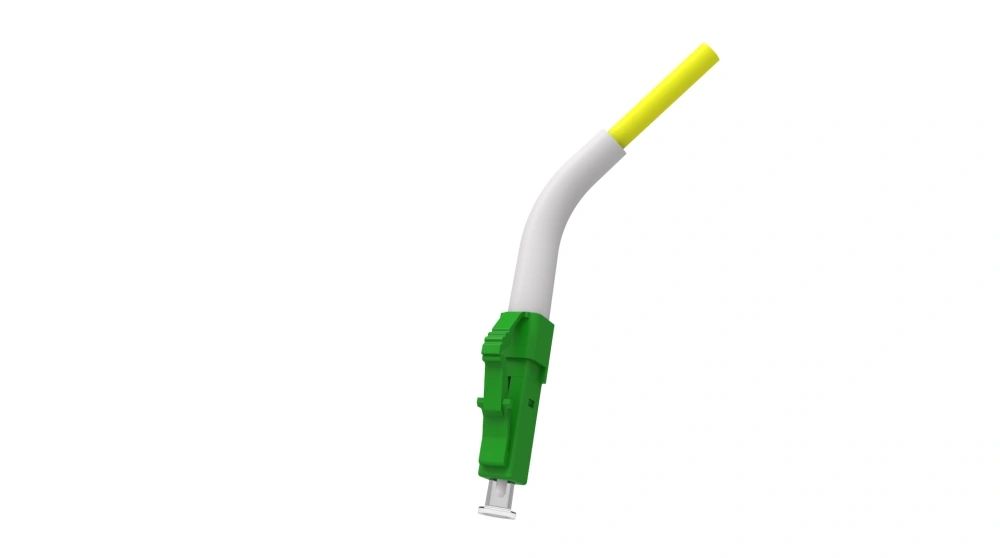

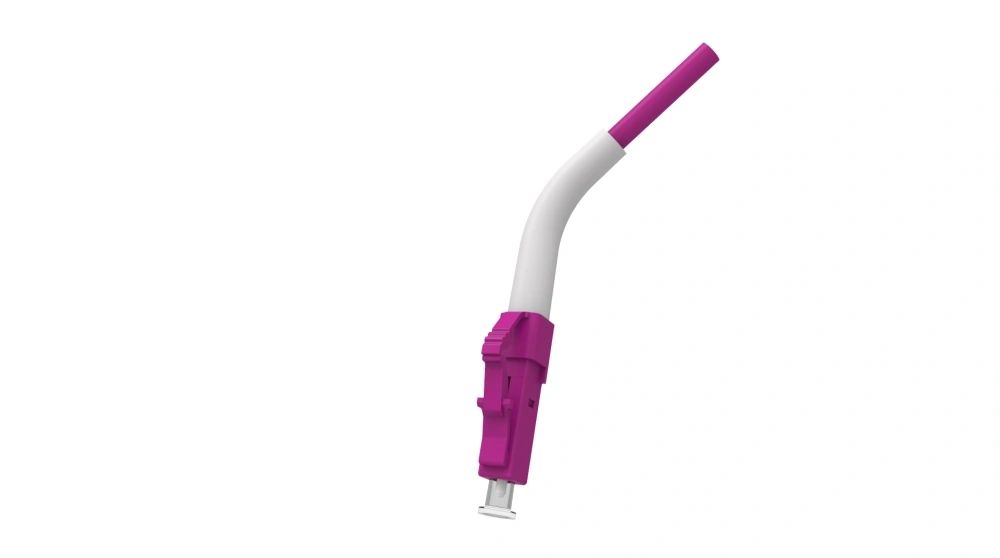

LC Fiber Optic Connector with 45°Angle Boot

Product Attributes
Model No.  LC Fiber Optic Connector
Brand  Fibercan
Species  Backshell
Place of Origin  China

Packaging & Delivery
Selling Units  Piece/Pieces
Package Type  Carton

Product Description
Connector Type  LC/APC, LC/UPC, LC/PC (Multimode)
Suitable Cable Type  Simplex or Duplex Indoor Optical Cable
Suitable Cable Diameter  2.0–3.0 mm
Fiber Type  Singlemode OS2, Multimode OM1, OM2, OM3, OM4, OM5
Coupling Tensile  70N for 2.0 mm connector, 80N for 3.0 mm connector
Standard Compliance  IEC, GR-326, RoHS, REACH
Quality Level  Grade A/1, Grade B/1, Grade C

Test Standards

1. Endface  IEC 61300-3-35

2. Optical Performance  IEC 61300-3-34

3. Mechanical Tensile  IEC 61300-2-6, IEC 61300-2-4

4. Durability  IEC 61300-2-2

5. Vibration  IEC 61300-2-1

6. Torsion  IEC 61300-2-5

7. Drop  IEC 61300-2-12 (Method A)

8. Static Load  IEC 61300-2-42

9. Flex  GR-326-CORE, 4.4.3.2

10. Cold Test  IEC 61300-2-17

11. Dry Heat  IEC 61300-2-18

12. Damp Heat  IEC 61300-2-19

13. Temperature Change  IEC 61300-2-22

14. Damp Heat  IEC 60068-2-30

15. Salt Mist  IEC 61300-2-26

16. Humidity Cycling  IEC 61300-2-21

17. Dust  IEC 61300-2-27

18. Cable Bend  IEC 60794-1-21
