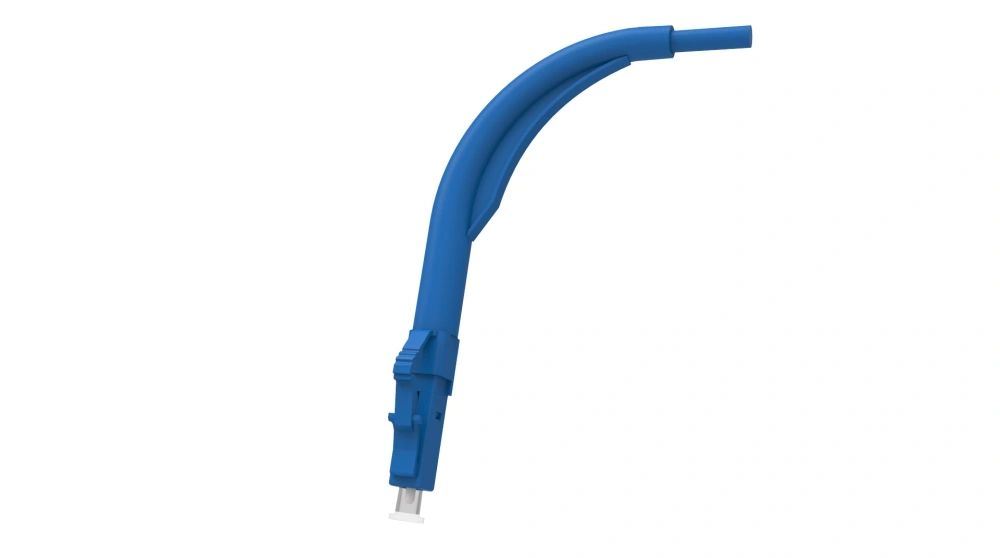

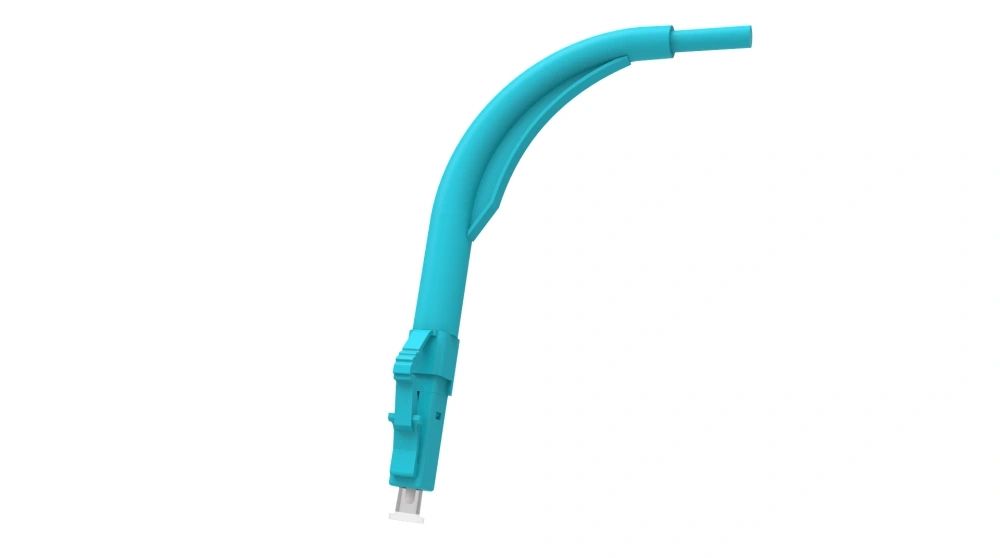

LC Fiber Optic Connector with 90°Angle Boot

Product Attributes
Model No. LC Fiber Optic Connector
Brand Fibercan
Species Backshell
Place of Origin China

Packaging & Delivery
Selling Units: Piece/Pieces
Package Type: Carton

Product Description
Connector Type: LC/APC, LC/UPC, LC/PC (Multimode)
Suitable Cable Type: Simplex or Duplex Indoor Optical Cable
Suitable Cable Diameter: 2.0–3.0 mm
Fiber Type: Singlemode OS2, Multimode OM1, OM2, OM3, OM4, OM5
Coupling Tensile: 70N for 2.0 mm connector, 80N for 3.0 mm connector
Standard Compliance: IEC, GR-326, RoHS, REACH
Quality Level: Grade A/1, Grade B/1, Grade C

Test Standards

1. Endface – IEC 61300-3-35

2. Optical Performance – IEC 61300-3-34

3. Mechanical Tensile – IEC 61300-2-6, IEC 61300-2-4

4. Durability – IEC 61300-2-2

5. Vibration – IEC 61300-2-1

6. Torsion – IEC 61300-2-5

7. Drop – IEC 61300-2-12 (Method A)

8. Static Load – IEC 61300-2-42

9. Flex – GR-326-CORE, 4.4.3.2

10. Cold Test – IEC 61300-2-17

11. Dry Heat – IEC 61300-2-18

12. Damp Heat – IEC 61300-2-19

13. Temperature Change – IEC 61300-2-22

14. Damp Heat – IEC 60068-2-30

15. Salt Mist – IEC 61300-2-26

16. Humidity Cycling – IEC 61300-2-21

17. Dust – IEC 61300-2-27

18. Cable Bend – IEC 60794-1-21
