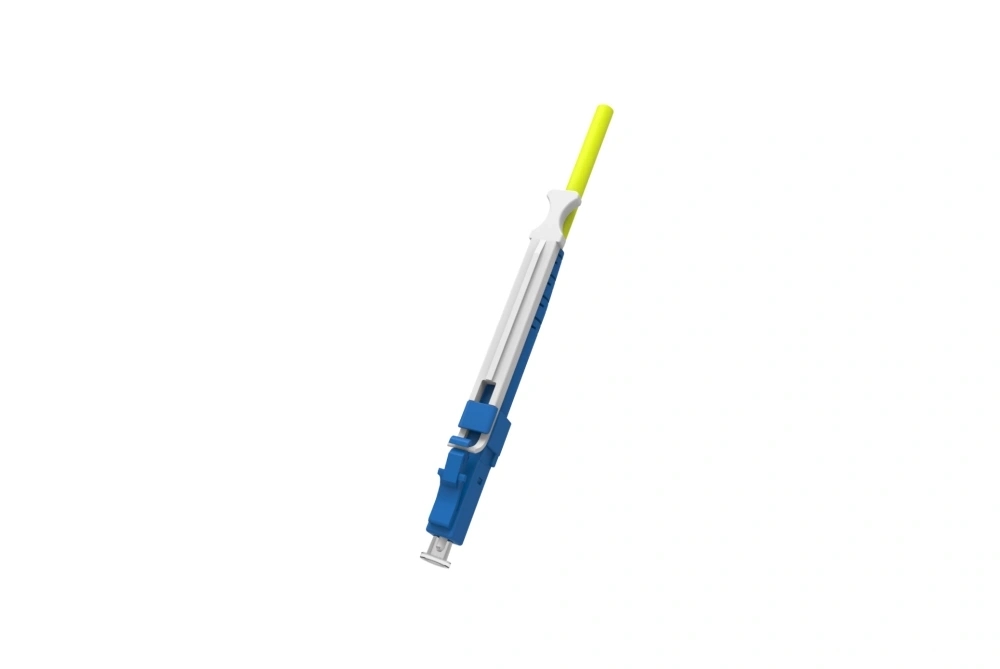

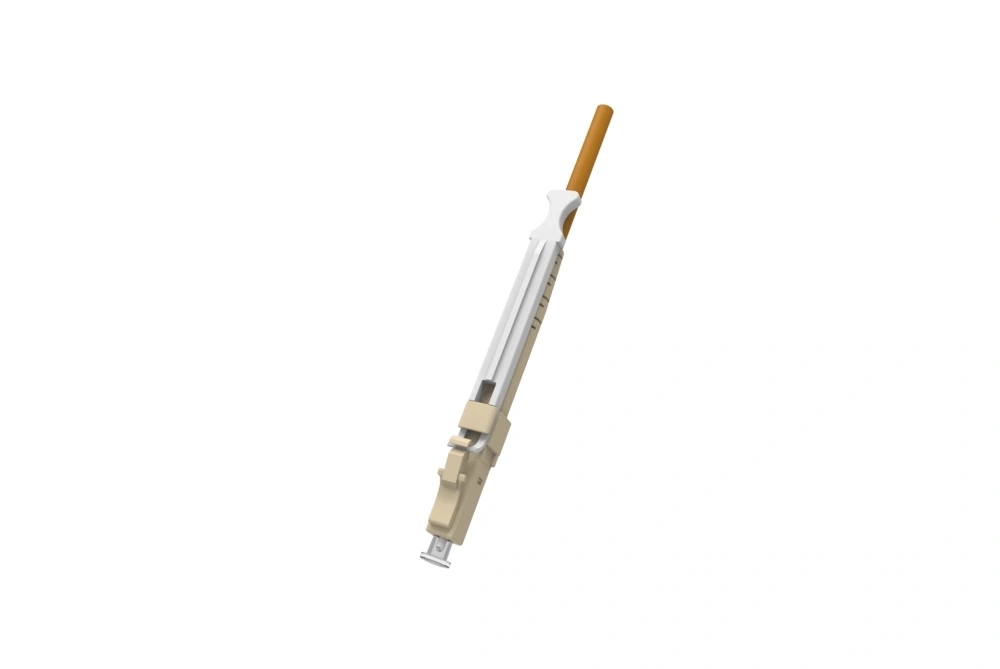

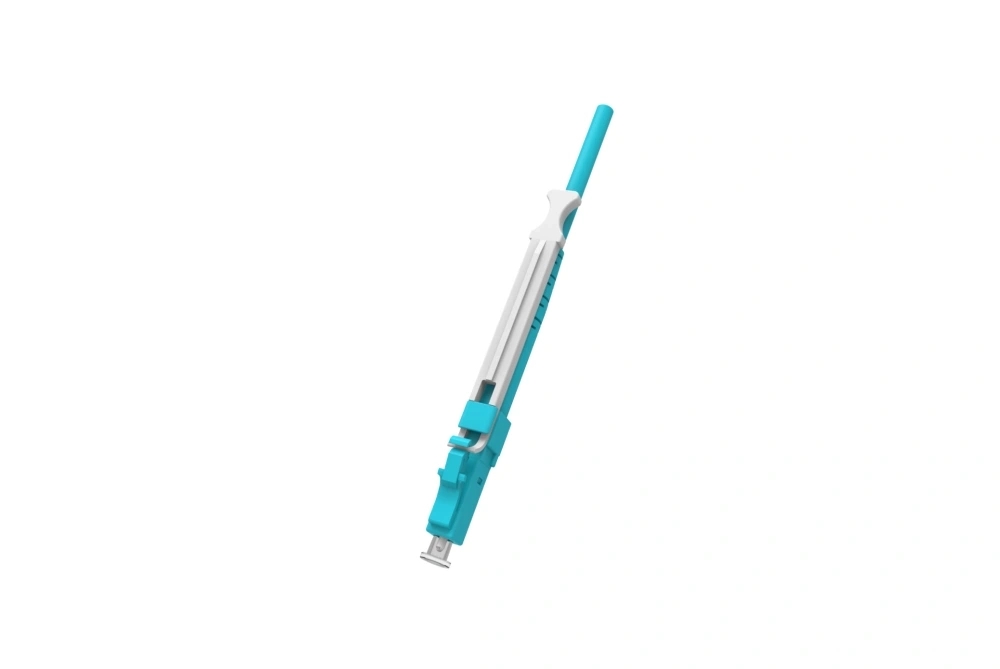

LC Fiber Optic Patch Cord with PullPush Tap

Product Attributes

Model No. : LC,LC/APC,LC/UPC,LC/PC

Brand : Fibercan

Place Of Origin : China

Packaging & Delivery

Selling Units: Piece/Pieces

Package Type: Carton

Product Description

LC Fiber Optic Patch Cord with Pull/Push Tap

Product Name: LC Patch Cord ,LC Patch Lead,LC Jumper

Connector Type: LC/APC(8°or 9°), LC/UPC(SM), LC/PC(MM)

Cable Type: Simplex

Cable Diametre: 1.4mm-3.0mm

Fiber Type: OS2 OM1 OM2 OM3 OM4 OM5

Sheath Material: LSZH,PVC,TPU,TPE,OFNR,OFNP

Standard compliance: IEC, Telcordia, RoHs, Reach Compliance

Quality Level: Grade A/1,Grade B/1,Grade C

Test Standard:

1. Endface: IEC-61300-3-35

2. Optical Performance: IEC-61300-3-34

3. Mechanical Tensile: IEC-61300-2-6,IEC-61300-2-4

4. Durability: IEC 61300-2-2

5. Vibration: IEC 61300-2-1

6. Torsion: IEC 61300-2-5

7. Drop: IEC 61300-2-12(Method A)

8. Static Load: IEC 61300-2-42

9. Flex: GR‐326‐CORE, 4.4.3.2

10. Cold Test: IEC 61300-2-17

11. Dry Heat: IEC 61300-2-18

12. Damp Heat: IEC 61300-2-19

13. Temperature Change: IEC 61300-2-22

14. Damp Heat: IEC 60068-2-30

15. Salt Mist: IEC 61300-2-26

16. Humidity Cycling: IEC 61300-2-21

17. Dust: IEC 61300-2-27

18. Cable Bend: IEC 60794-1-21
