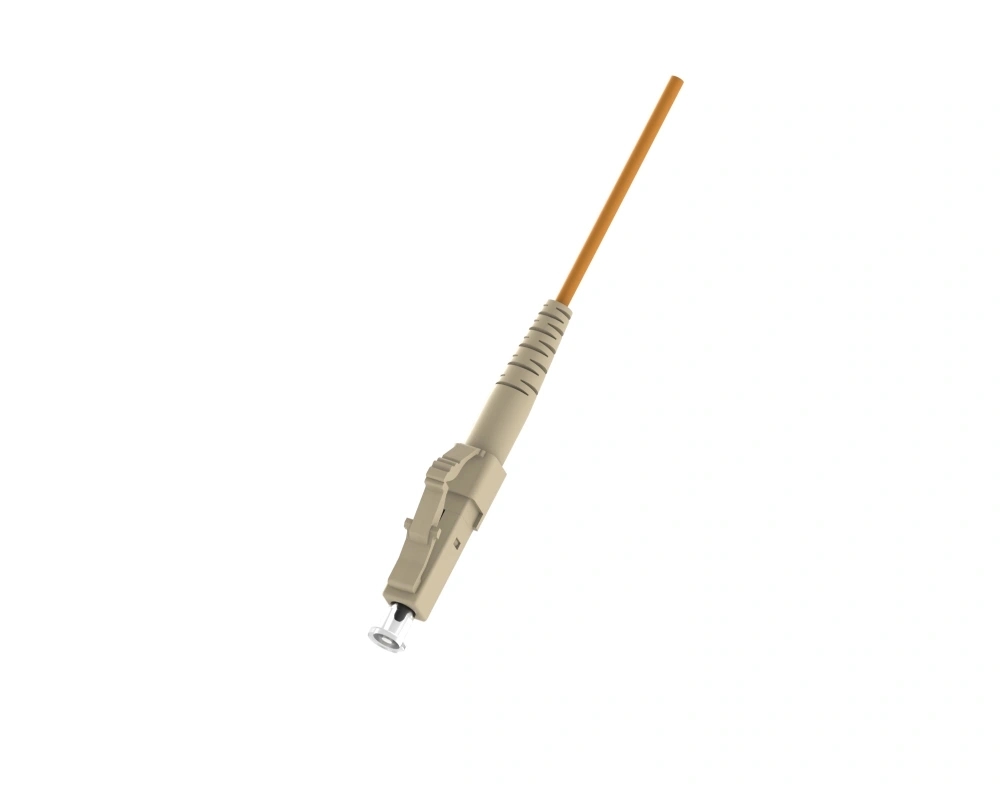

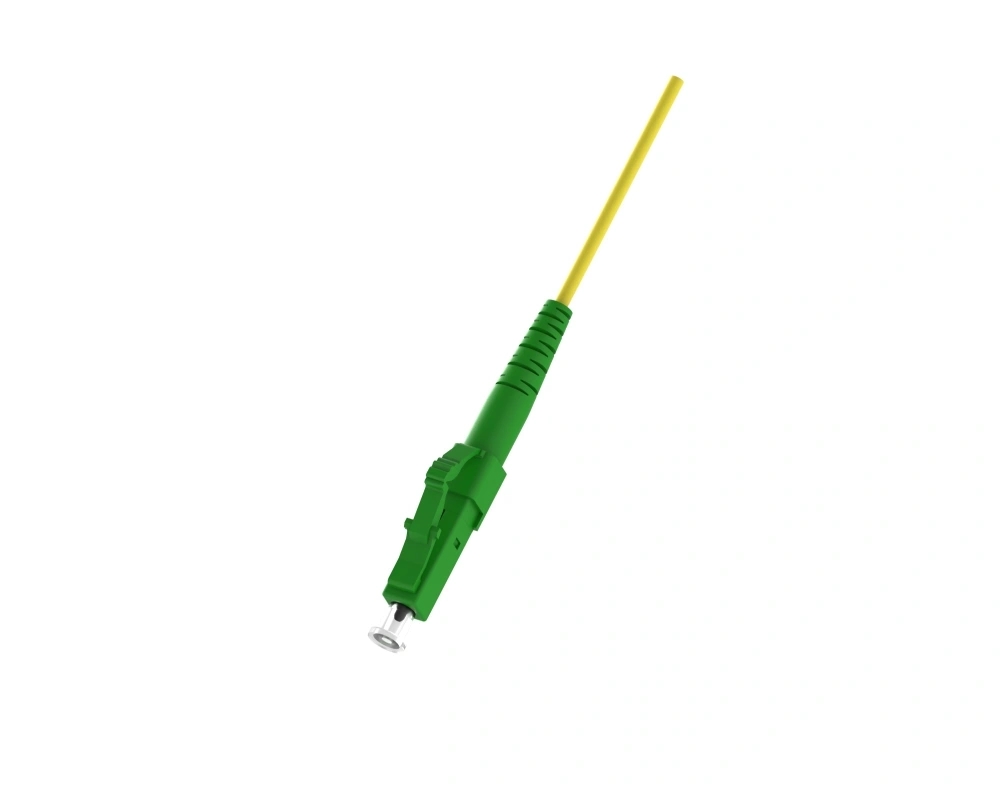

LC Fiber Optic Patch Cord

Product Description

LC Fiber Optic Patch Cord

Product Name: Patch Cord, Patch Lead, Jumper
Connector Type: LC/APC (8° or 9°), LC/UPC (SM), LC/PC (MM)
Cable Type: Simplex or Duplex
Cable Diameter: 1.2mm – 4.2mm
Fiber Type: OS2, OM1, OM2, OM3, OM4, OM5
Sheath Material: LSZH, PVC, TPU, TPE, OFNR, OFNP
Standard Compliance: IEC, Telcordia, RoHS, REACH Compliance
Quality Level: Grade A/1, Grade B/1, Grade C

Test Standard

1. Endface: IEC 61300-3-35

2. Optical Performance: IEC 61300-3-34

3. Mechanical Tensile: IEC 61300-2-6, IEC 61300-2-4

4. Durability: IEC 61300-2-2

5. Vibration: IEC 61300-2-1

6. Torsion: IEC 61300-2-5

7. Drop: IEC 61300-2-12 (Method A)

8. Static Load: IEC 61300-2-42

9. Flex: GR‐326‐CORE, 4.4.3.2

10. Cold Test: IEC 61300-2-17

11. Dry Heat: IEC 61300-2-18

12. Damp Heat: IEC 61300-2-19

13. Temperature Change: IEC 61300-2-22

14. Damp Heat (Alternate): IEC 60068-2-30

15. Salt Mist: IEC 61300-2-26

16. Humidity Cycling: IEC 61300-2-21

17. Dust: IEC 61300-2-27

18. Cable Bend: IEC 60794-1-21
