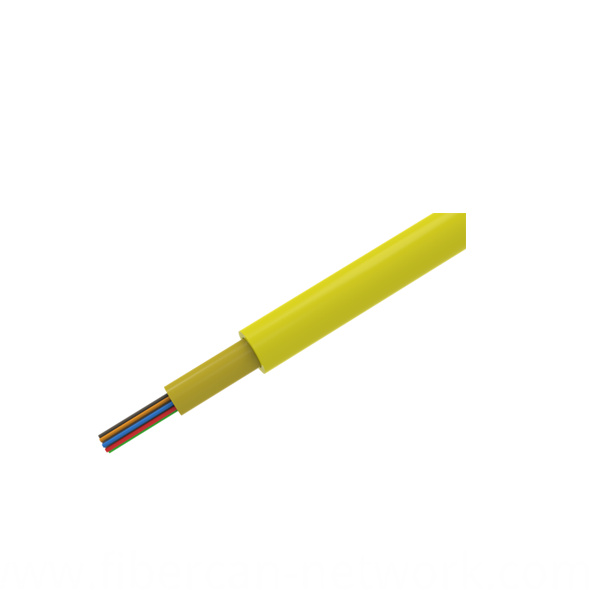

Micro-Breakout Optical Cable

Product Attributes

Model No.: Micro-Breakout Optical Cable

Brand: Fibercan

Place Of Origin: China

Packaging & Delivery

Selling Units:Piece/Pieces

Package Type:Carton

Product Description

Cable Diametre: 2.0mm-17.5mm

Fiber Counts: 4-144 Fiber

Sheath Type: LSZH, PVC, OFNR, OFNP

Sheath Color: Yellow, Red, Black, White, Orange, Aqua, Rose, Light Green etc

Strength Member: Aramid Yarn

Fiber Type: Singlemode OS2, Multimode OM1, Multimode OM2, Multimode OM3, Multimode OM4, Multimode OM5

Fiber Brand: Corning, YOFC, OFS, Draka, Fiberhome, Fujikura Optional

Tensile Short Term: According to Cable Diametre IEC 60794-1-21 E1

Tensile Long Term: According to Cable Diametre IEC 60794-1-21 E1

Crush Short Term：500-1000N(According to Cable Diametre)

Crush Long Term：100-300N(According to Cable Diametre)

Min. bending radius (mm)：(Static) 10D (Dynamic) 20D

Operating temperature range: from -20°C to + 65°C

Certified: CPR Cca, UKCA, RoHs
