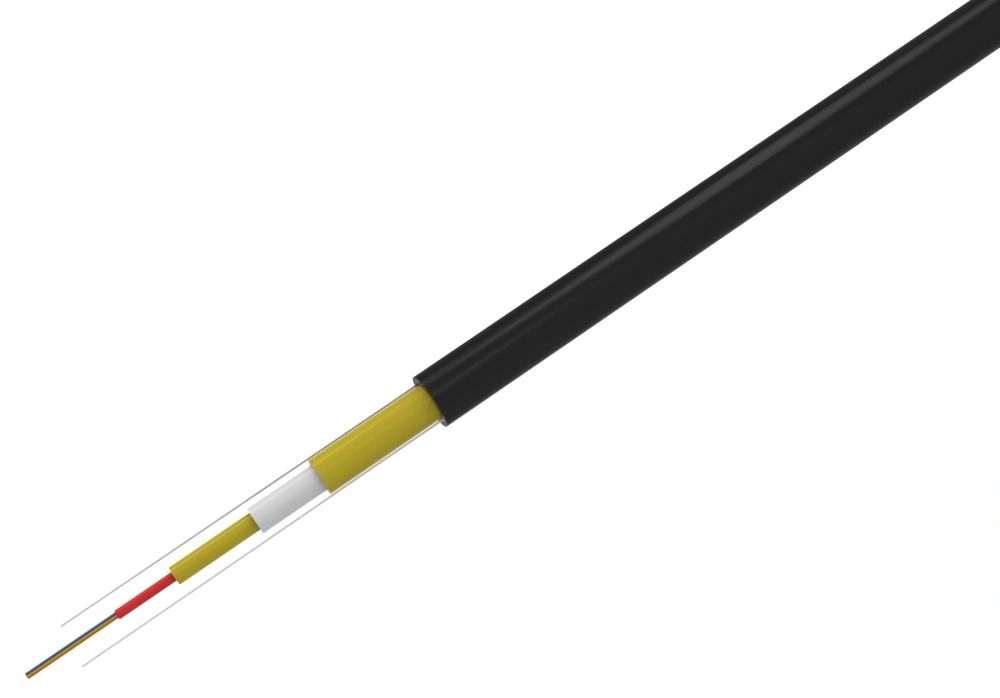

Micro Bundle Type Dual Jacket Drop Cable(With FRP)

Product Attributes

Model No.: Micro Bundle Type Dual Jacket Drop Cable(With FRP)

Brand: Fibercan

Place Of Origin: China

Packaging & Delivery

Selling Units: Piece/Pieces

Package Type: Carton

Product Description

Cable Diametre: 4.5-5.2mm

Fiber Counts: 1-12 Fiber

Strength Member: Aramid Yarn, Water Block Aramid Yarn, FRP

Sheath Type: LSZH, PE

Sheath Color: White, Ivory, Black

Fiber Type: Singlemode G652D, Singlemode G657A1, Singlemode G657A2, Singlemode G657B3

Fiber Brand: Corning, YOFC, OFS, Draka, Fiberhome, Fujikura Optional

Mode Field Diametre: 8.6±0.4 (Corning Fiber) or 8.8±0.4 (YOFC Fiber)

Attenuation: @1310nm＜0.36dB, @1550nm＜0.22dB

Tensile Short Term: 720N IEC 60794-1-21 E1

Tensile Long Term: 350N IEC 60794-1-21 E1

Crush Short Term: 1000N

Crush Long Term: 300N

Min. bending radius (mm): (Static) 10D (Dynamic) 20D

Operating temperature range: from -20°C to + 65°C

Certified: CPR Cca, UKCA, PIA

Looking for ideal Micro Bundle Type Dual Jacket Drop Cable Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the Figure 8 Fiber Optic Drop Cable are quality guaranteed. We are China Origin Factory of Flat Fiber Optic Drop Cable. If you have any question, please feel free to contact us.
