Product Description
Product Attributes
: 809-0205-001
: Fibercan
: China
Packaging & Delivery
| Selling Units: | SET |
| Package Type: | Carton |
Product Description

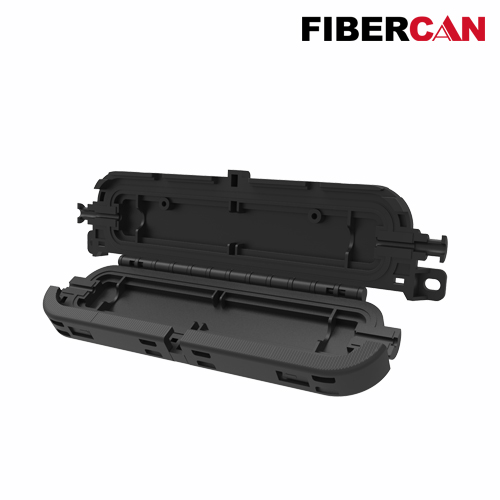

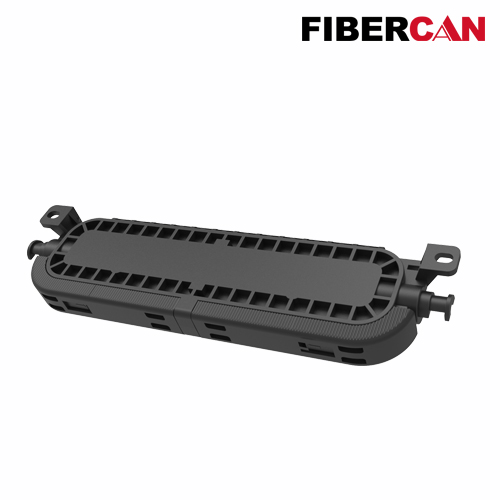

FBK-MINI is a fiber optic drop cable protection box that used for drop cable connecting, splice and protection.It can install 1pcs SC simplex adapter and 2pcs fast connector connection inside.The box is made of high quality ABS material, and with sealing gasket between box cover and base for waterproof application. Both side can lead in/out 2*3mm FTTH drop cable or 3mm round cable.
Features
Small size, nice shape, convenient Installation.
Splice contact protection is stable & reliable,Protect cable from damaged or broken by external force.
Outdoor wall-mount & aerial hanged application.

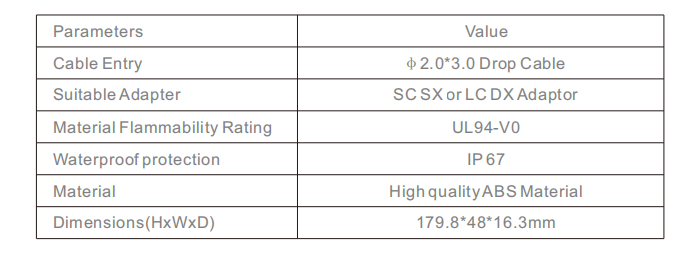

Specifications

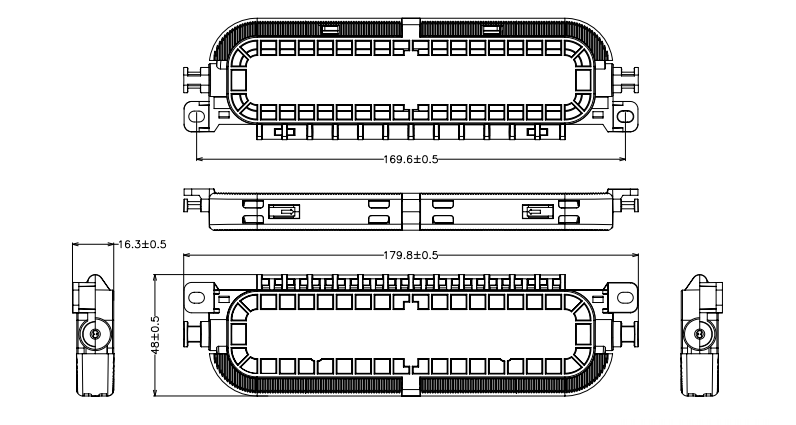

Mechanical Diagram(unit:mm)
Test procedure
Thermal Cycling
Proof Test
Thermal Aging
Waterproof test
Other
Other Reuqirement
RoHs-Compliance of item and package
