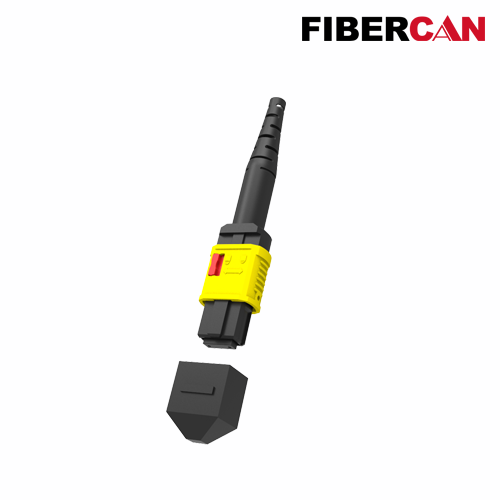

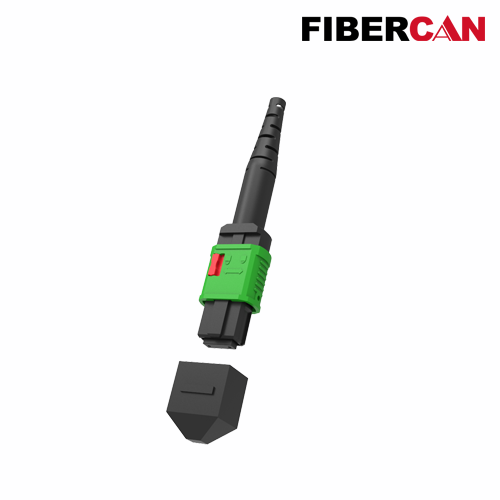

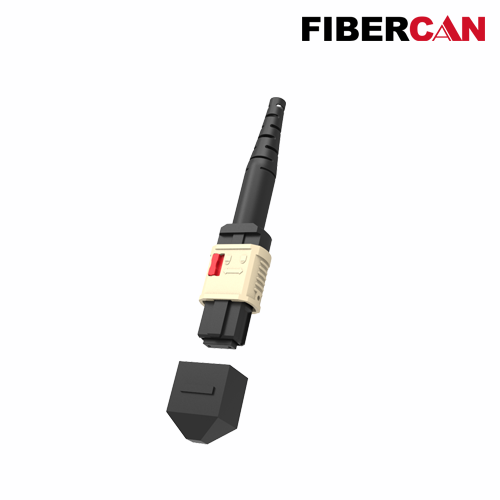

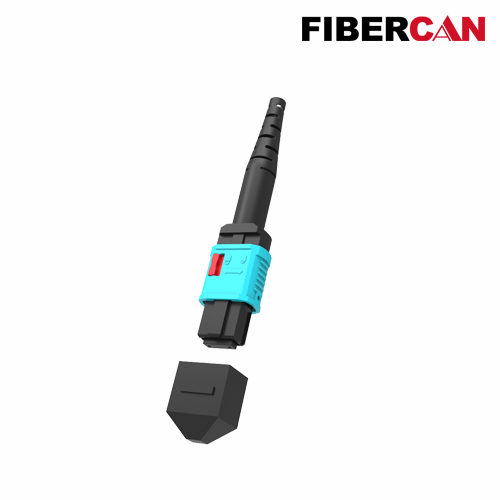

MPO Connector with lock function

Product Attributes

Model No.: MPO, MPO Elite

Brand: Fibercan

place of origin: China

Packaging & Delivery

Product Description

Product Overview

In order to provide the best solution for low-latency and ultra-high-speed network transmission  for companies and operators home and abroad, Fibercan design and produce innovative MPO  with Lock connector which can preventing accidental disengagement caused by mechanical  vibrations or cable stress.

Features

Vibration-Resistant Lock

Anti-Disconnect Protection

One-Hand Push-Pull Operation

High mechanical and thermal resistance according to Telcordia GR1435

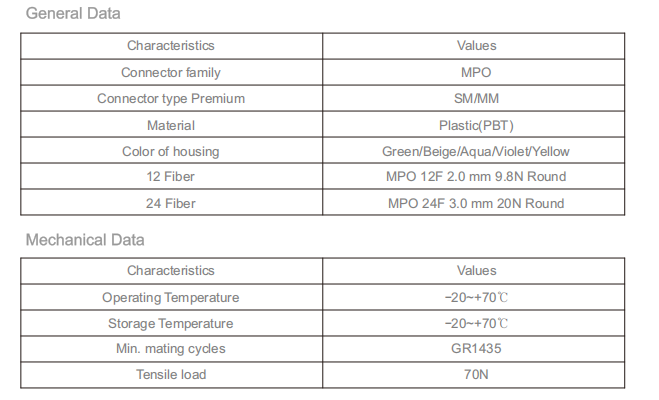

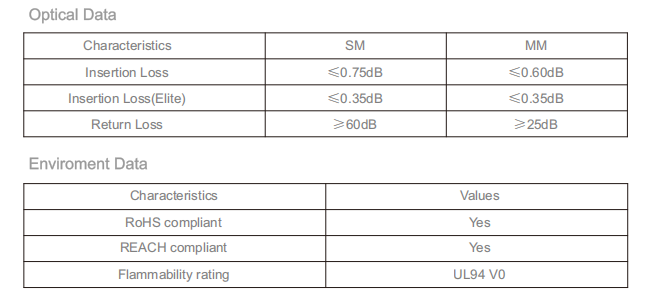

Technical Data

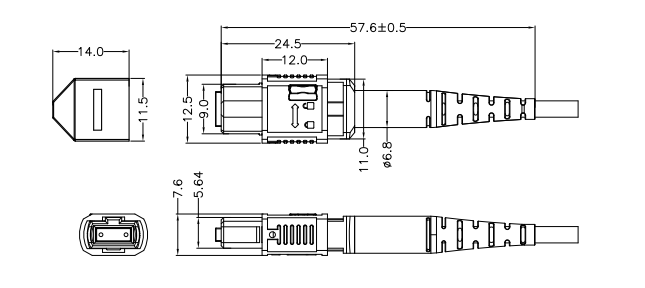

Mechanical Diagram(unit:mm)

Other Reuqirement

Applicable Standards

   Optical interface Standard

                                              IEC 61755-3-31             Part 3-31: Optical interface – 8 degrees angled PC end-face  PPS rectangular ferrule, single mode fiber

   Interface Standard

                                              IEC 61754-7                  Part 7: Type MPO connector family

                                              IEC 61754-7                  Part 7: Type MPO connector family

                                              TIA-604-5                     Fiber Optic Connector Intermateability Standard, Type MPO

   Test and measurement     IEC 61300-3-35            Part 3-35: Examinations and measurements – Fiber optic  connector endface visual and automated inspection

                                              Telcordia GR-1435      Generic Requirements for Multi-Fiber Optical Connectors
