Polarization-Maintaining Fiber Array(PM FA)

Payment Type:

Incoterm: FOB,CIF,EXW,DDU,Express Delivery

Transportation: Ocean,Land,Air,Express

Supply Type: Original Manufacturer

Inquire

Product Description
Specification

Product Description

Product Attributes

Model No.: PM FA

Brand: Fibercan

place of origin: China

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Carton

Product Description

These products use high-precision customized V-grooves, specialized adhesives, and proprietary assembly techniques to secure polarization-maintaining (PM) fibers in the V-grooves with either fast-axis or slow-axis alignment. The series demonstrates exceptional characteristics including: Precise fast/slow axis alignment accuracy, High extinction ratio performance, Controlled fiber pitch and polish angle, Superior end-face finish quality.

Features

◆High Extinction Ratio (PER >18dB)

◆Excellent Repeatability & Stability

◆Precision Fiber Pitch(Pitch≤0.5um)

◆Accurate Polish Angle (Customizable)

◆Compliant with GR-1209, GR-1221 & RoHS

Applications

◆Multi-channel Optical Integrated Device

◆Coherent Communication

◆Polarization-Maintaining Optical System

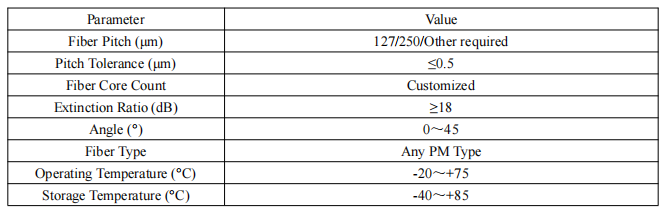

Specification

2-250913163103416
