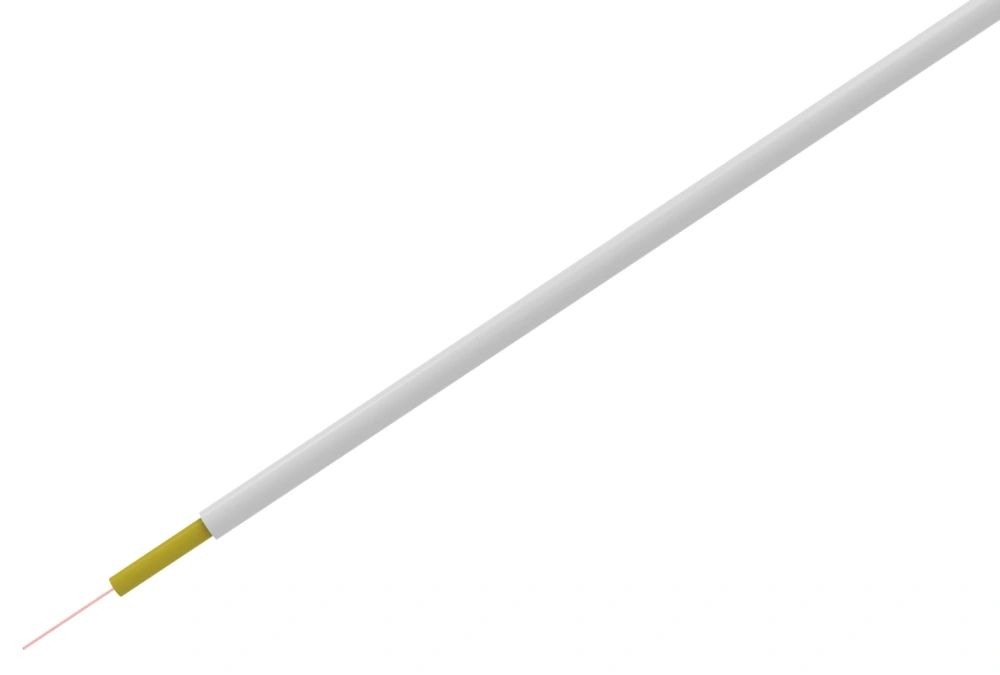

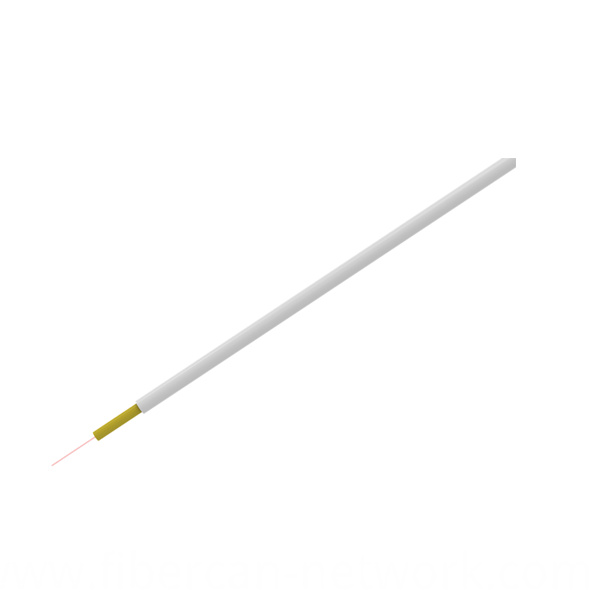

Round Fiber Optic Drop Cable

Payment Type:

Incoterm: FOB,CIF,EXW,DDU,Express Delivery

Transportation：Ocean,Land,Air,Express

Supply Type:

Inquire

Product Description

Product Attributes

Model No.: Round Fiber Optic Drop Cable

Brand: Fibercan

Place Of Origin: China

Packaging & Delivery

Selling Units:Piece/Pieces

Package Type:Carton

Product Description

Cable Diametre: 2-5mm

Fiber Counts: 1 Fiber

Strength Member: Aramid Yarn,Water Block Aramid Yarn

Sheath Type: LSZH, OFNR, OFNP

Sheath Color: White, Ivory, Black

Fiber Type: Singlemode G652D, Singlemode G657A1, Singlemode G657A2, Singlemode G657B3

Fiber Brand: Corning, YOFC, OFS, Draka, Fiberhome, Fujikura Optional

Mode Field Diametre: 8.6±0.4(Corning Fiber) or 8.8±0.4(YOFC Fiber)

Attenuation: @1310nm ＜0.36dB, @1550nm＜0.22dB

Tensile Short Term: 450N IEC 60794-1-21 E1

Tensile Long Term: 200N IEC 60794-1-21 E1

Crush Short Term：1000N

Crush Long Term：300N

Min. bending radius (mm)：(Static) 10D (Dynamic) 20D

Operating temperature range: from -20°C to + 65°C

Certified: CPR Cca, UKCA
