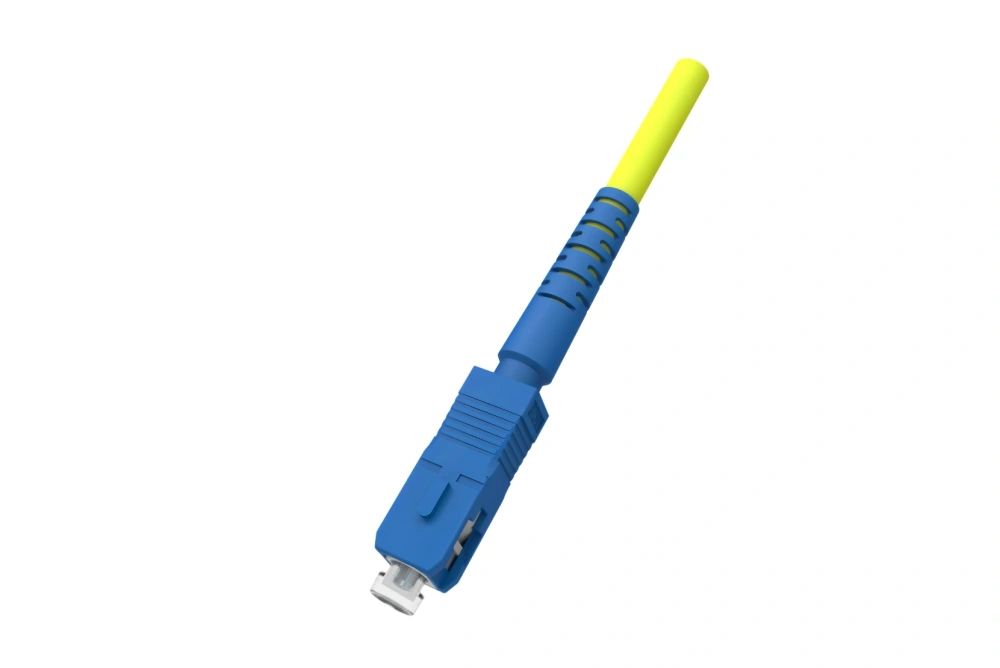

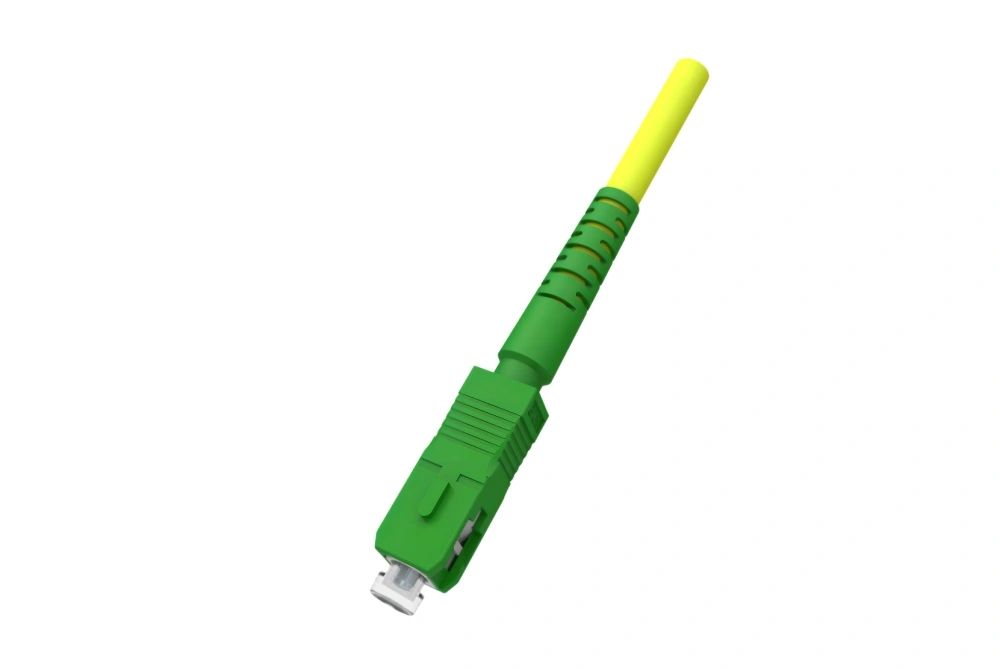

SC Fiber Optic Connector with Flexible Boot

Product Description

Product Attributes

Model No.:
SC Fiber Optic Connector

Brand:
Fibercan

Species:
Backshell

Place of Origin:
China

Packaging & Delivery
Selling Units: Piece/Pieces
Package Type: Carton

Product Description

Connector Type:
SC/APC, SC/UPC, SC/PC (Multimode)

Suitable Cable Type:
Simplex or Duplex Indoor Optical Cable

Suitable Cable Diameter:
2.0–3.0mm

Fiber Type:
Singlemode OS2, Multimode OM1, Multimode OM2, Multimode OM3, Multimode OM4, Multimode OM5

Coupling Tensile:
80N for 2.0mm and 100N for 3.0mm

Standard Compliance:
IEC, GR-326, RoHS, REACH Compliance

Quality Level:
Grade A/1, Grade B/1, Grade C

Test Standards

1. Endface: IEC 61300-3-35

2. Optical Performance: IEC 61300-3-34

3. Mechanical Tensile: IEC 61300-2-6, IEC 61300-2-4

4. Durability: IEC 61300-2-2

5. Vibration: IEC 61300-2-1

6. Torsion: IEC 61300-2-5

7. Drop: IEC 61300-2-12 (Method A)

8. Static Load: IEC 61300-2-42

9. Flex: GR-326-CORE, 4.4.3.2

10. Cold Test: IEC 61300-2-17

11. Dry Heat: IEC 61300-2-18

12. Damp Heat: IEC 61300-2-19

13. Temperature Change: IEC 61300-2-22

14. Damp Heat: IEC 60068-2-30

15. Salt Mist: IEC 61300-2-26

16. Humidity Cycling: IEC 61300-2-21

17. Dust: IEC 61300-2-27

18. Cable Bend: IEC 60794-1-21
