SC Pre-Assembled Connector

Payment Type:

Incoterm: FOB,CIF,EXW,DDU,Express Delivery

Transportation: Ocean,Land,Air,Express

Supply Type: Original Manufacturer

Inquire

Product Description
Specification

Product Description

Product Description

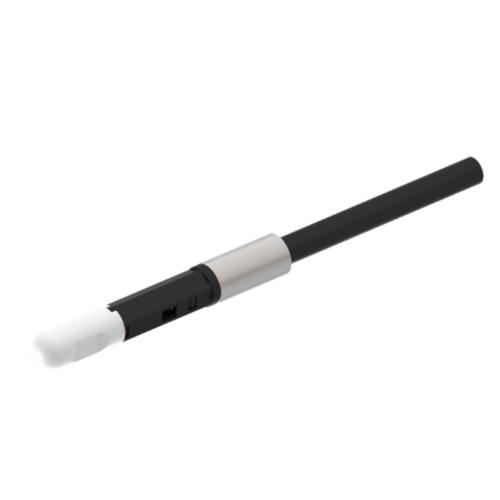

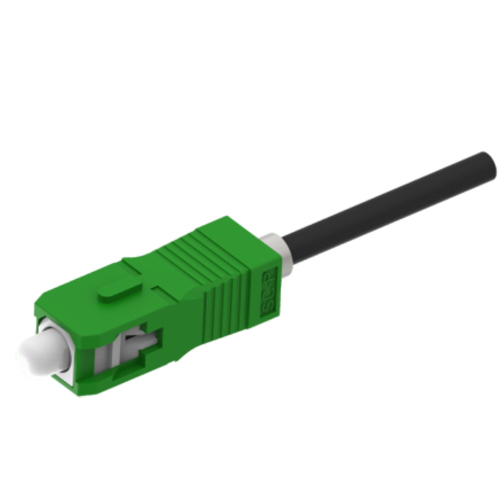

Fibercan SC Pre-Assembled Connector

Model No.: 802-01200000-0901
Brand: Fibercan
Place of Origin: China

Packaging & Delivery

Selling Units: Piece/Pieces
Package Type: Carton

Product Details

Connector Type: SC (Simplex or Duplex)
Application: Simplifies fiber deployment in field installation
Design Features:

Factory-terminated and polished SC connectors
Snap-together assembly in seconds
No mechanical or fusion splicing required
Ensures fiber protection and maintains optical reliability

Installation: After pushing or pulling through microduct, remove the smooth-wall protective sleeve and snap the outer housing into place, creating an industry-standard connector
Advantages: Fast, tech-friendly installation with reliable performance

Specification

Cable size:3.0mm,2.0mm

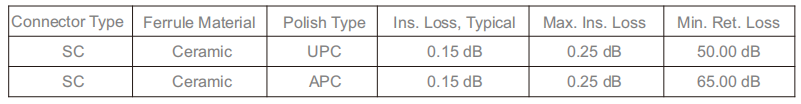

Minimum Performance Specifications for Terminated Single mode Connectors

2-250R9142430M9

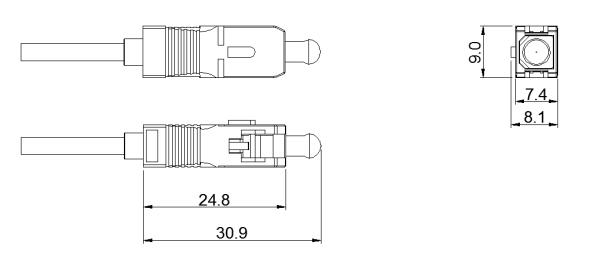

Mechanical Diagram(unit:mm)

2-250RZ940319C

Certification

Chinese Patent No.:ZL 2020 2 1175753.3

Test Procedure

Optical Characteristics

Vibration Test

Thermal Cycling

Impact Resistance

Thermal Aging

Humidity Resistance

Others

Other Requirements

The performance of the patch cord has been carfully designed to meet the toughest Telcordia standards

RoHs-Compliance of item and package

Performance according to IEC
