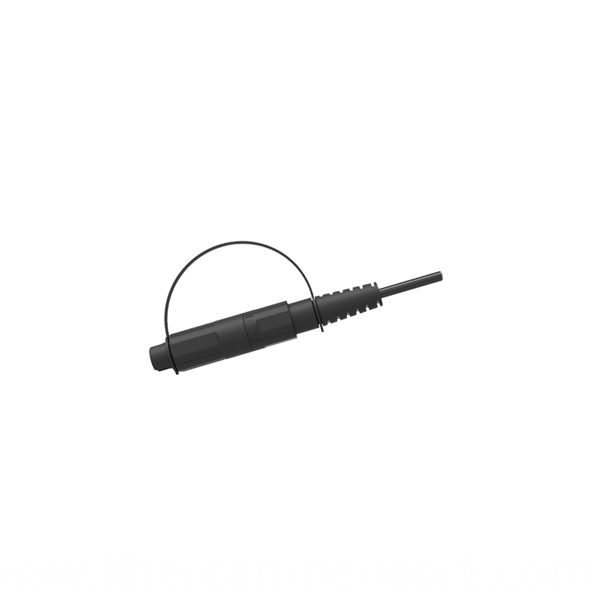

Toptap Male Cable Assembly

Product Attributes

Model No.: Toptap Male Cable Assembly

Brand: Fibercan

species: Backshell

place of origin: China

Packaging & Delivery

Product Description

Application: Fiber Optic IP68 Hardened Cable Assembly
Cable Type: Round Cable, Flat Cable or Figure 8 Drop Cable with messenger wire
Fiber Type: Singlemode G652D, Singlemode G657A2, Singlemode G657B3
Sheath Material: Low Friction LSZH,PE,PVC,OFNR,OFNP
Housing Material: PEI+30%FV
Connector Type: SC Simplex, LC Duplex, MTP and MPO
Compatible: Corning Optitap,Amphenol H-Connector
Quality Level: Grade B or Grade C
Standard compliance: IEC, Telcordia, RoHs

Test Standard:
1. Endface: IEC-61300-3-35
2. Optical Performance: IEC-61300-3-34
3.Mechanical Tensile: IEC-61300-2-6,IEC-61300-2-4
4.Durability: IEC 61300-2-2
5.Vibration: IEC 61300-2-1
6.Torision: IEC 61300-2-5
7.Drop: IEC 61300-2-12(Method A)
8.Static Load: IEC 61300-2-42
9.Flex: GR‐326‐CORE, 4.4.3.2
10.Cold Test: IEC 61300-2-17
11.Dry HEAT: IEC 61300-2-18
12.Damp Heat: IEC 61300-2-19
13.Temperature Change: IEC 61300-2-22
14.Damp Heat: IEC 60068-2-30
15.Salt Mist: IEC 61300-2-26
16.Humidity Cycling: IEC 61300-2-21
17.Dust: IEC 61300-2-27
18.Cable Bend: IEC 60794-1-21
