MT-2 FA

Payment Type:

Incoterm: FOB,CIF,EXW,DDU,Express Delivery

Transportation: Ocean,Land,Air,Express

Supply Type: Original Manufacturer

Inquire

Product Description

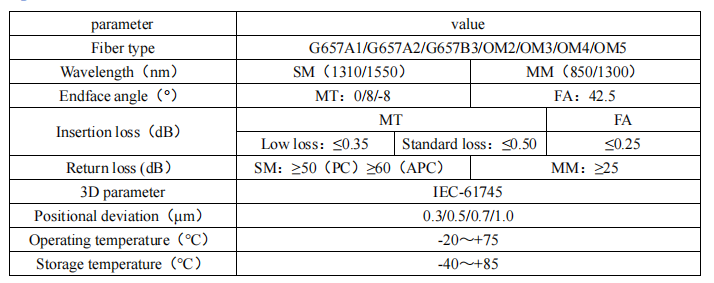

Specification

Product Description

Product Attributes

Model No.: MT-2 FA

Brand: Fibercan

place of origin: China

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Carton

Product Description

This product is designed for parallel transmission in optical transceiver modules, supporting interfaces such as 100G PSM4 for external port connectivity. It achieves total internal reflection (TIR) at the end face by polishing the fiber array into a 42.5° angled mirror. With low-loss MT ferrules and V-groove pitch tolerance controlled within ±0.5μm, it provides the most compact parallel connectivity solution for optical transceiver modules.

Features

◆0.35dB ultra-low loss

◆High precision

◆High repeatability and stability

◆Comply with TIA/IEC standards

◆Comply with GR-1209、GR1221 and RoHS standards

Applications

◆100G PSM high-speed optical module

◆400G DR4 high-speed optical module
